import importlib
import math
import pathlib
import random
import sys
def find_repo():
"""Locate the SciGraphs repository, without relying on the cwd.
In a normal Jupyter the kernel starts per notebook with the cwd set to its
folder. Not here: the kernel lives inside Blender and existed before you
opened anything, so the cwd is wherever Blender was launched from. What the
extension does know is which folder it is serving to JupyterLab.
"""
candidates = []
try:
import bpy
prefs = bpy.context.preferences.addons[
"bl_ext.user_default.jupyter_blender"].preferences
candidates.append(pathlib.Path(bpy.path.abspath(prefs.notebook_dir)))
except Exception:
pass
candidates.append(pathlib.Path.cwd())
for base in candidates:
for directory in (base, *base.parents):
if (directory / "SciGraphs" / "api" / "graphs.py").is_file():
return directory
raise RuntimeError(
"Cannot find the SciGraphs repository. Point at it by hand:\n"
" sys.path.insert(0, '/path/to/SciGraphs-1/notebooks/tools')")
sys.path.insert(0, str(find_repo() / "notebooks" / "tools"))
import bpy
import networkx as nx
import numpy as np
# `nb` must import first: it puts this repository on sys.path, so the
# `SciGraphs` import below reads this tree, not the copy Blender installed.
import nb
from nb import check
from SciGraphs import api as sg08 · Routing
A route starts from a coordinate, not from a node, so the first thing that happens is a snap and the first thing that can be wrong is that snap. Over 500 points the median lands 49.7 m from its nearest intersection, and applied at both ends that is a median 9.7 % of the trip, 39 % in the worst case measured: a 582 m route carrying 228 m of pure snapping.
Weighting by travel time instead of distance changes 35 of 200 origin-destination pairs, and where it changes the two routes share only a third of their edges. The alternatives k_shortest returns are a weaker notion than they sound: the travel-time route appears among them as alternative three of eight.
The OSMnx router does honor the edge weight, unlike the add-on’s generic shortest-path operator, which cannot read one at all and reports a hop count where you expect meters. The rest of the suite depends on that.
08 · OSMnx: routing on the flat
Dijkstra has been correct since 1956. Routes go wrong on either side of it: where the route starts, what “shortest” measures, what the reported numbers were computed from. Flat ground throughout, so the weight is the only thing that changes.
- Snapping. The router needs a node, you have a coordinate, and the distance between them is never reported: here a median of 50 m.
- Distance against travel time: the routes differ on 35 of 200 origin-destination pairs, a median +3.6 % of distance for 3.2 % of time.
- Whether
osmnx_k_shortest’s k paths are different routes or one route with a block swapped. - A thousand routes counted onto the network: a usage estimate, and very nearly a betweenness centrality.
Routing on a slope is notebook 11, which builds the elevation, the per-edge grades and the elevation_impedance weight, and asks the same question of gradient: 5 of 80 pairs. Download and cleaning are 10; edge attributes and speeds 11, so osmnx_add_edge_speeds and osmnx_add_travel_times are used below unexplained; accessibility 13, centrality and export 14.
Study area Ciutat Vella, València (39.4699, -0.3763), 600 m of drive network: 243 intersections and 31.8 km of street, the extract the rest of the suite uses.
0 · Setup
The cache, before anything downloads
nb.osmnx() sets ox.settings.use_cache and ox.settings.cache_folder. The add-on sets only the first, and OSMnx’s default for the second is a relative path resolved against whatever directory Blender was launched from, so the same notebook run from two places keeps two caches and hits neither. Overpass is a shared public service: re-downloading every run earns an HTTP 429 and then Errno 111 (notebook 06 has the detail). It goes before the first operator rather than the first ox. call, because the importer imports the same osmnx module object this notebook does.
ox = nb.osmnx()
print(f"osmnx {ox.__version__}")
print(f"cache_folder {nb.rel(ox.settings.cache_folder)}")osmnx 2.0.7
cache_folder notebooks/data/cache/osmnxThe installed add-on, not this working tree
As in notebooks 06 and 11: the operators run inside the copy of SciGraphs that Blender registered, and the graph they leave behind lives in a module-level dictionary inside that copy. import SciGraphs reaches a different module object with an empty cache, and every get_osmnx_graph would return None.
CENTER = (39.4699, -0.3763) # Ciutat Vella, València
RADIUS_M = 600
NETWORK_TYPE = 'drive'
INSTALLED = next(k for k in bpy.context.preferences.addons.keys()
if k.rsplit(".", 1)[-1].lower() == "scigraphs")
graph_cache = importlib.import_module(INSTALLED + ".core.osmnx.graph_cache")
# `scigraphs_core` is a wheel: one copy in site-packages, shared by the notebook
# and the operators, so the installed/working-tree split does not apply to it.
routing = importlib.import_module("scigraphs_core.osmnx.routing")
spatial = importlib.import_module("scigraphs_core.osmnx.spatial_queries")
mesh_bridge = importlib.import_module("scigraphs_core.osmnx.mesh_bridge")
color_attrs = importlib.import_module("scigraphs_core.coloring.attributes")
print("add-on package:", INSTALLED)add-on package: bl_ext.user_default.scigraphsThree helpers
node_attribute writes a per-node quantity onto the mesh so a figure can be colored by it. An OSMnx mesh has far more vertices than nodes, 1374 for 243 intersections here, because every street keeps its shape as intermediate points. They are drawn, so leaving them at zero would put a value on the color scale that no node has; each takes the mean of the two intersections its street runs between.
meters converts a degree offset at this latitude. edge_set is a route as a set of (u, v) pairs, which is how two routes get compared.
M_PER_DEG_LAT = 111320.0
M_PER_DEG_LON = 111320.0 * math.cos(math.radians(CENTER[0]))
def meters(degrees, axis='lat'):
"""A degree offset in meters at the study area's latitude."""
return float(degrees) * (M_PER_DEG_LAT if axis == 'lat' else M_PER_DEG_LON)
def edge_set(path):
"""A route's edges, as unordered-by-position `(u, v)` pairs."""
return set(zip(path[:-1], path[1:]))
def node_attribute(obj, values, name, default=0.0):
"""Write a per-node quantity onto the mesh, filling the street geometry.
`values` maps OSM node id -> float. Returns (n_nodes_written, array).
"""
mesh = obj.data
ids = str(obj.get("nodes_data", "")).split(",")
filled = np.zeros(len(mesh.vertices), dtype=bool)
array = np.full(len(mesh.vertices), float(default), dtype=np.float64)
def key(text):
return int(text) if str(text).lstrip("-").isdigit() else text
for index, node_id in enumerate(ids):
if index >= len(array):
break
value = values.get(key(node_id))
if value is not None:
array[index] = float(value)
filled[index] = True
edge_verts = np.empty(len(mesh.edges) * 2, dtype=np.int32)
mesh.edges.foreach_get("vertices", edge_verts)
edge_verts = edge_verts.reshape(-1, 2)
for (u, v), indices in mesh_bridge.build_edge_mapping(obj).items():
a, b = values.get(key(u)), values.get(key(v))
if a is None or b is None:
continue
middle = 0.5 * (float(a) + float(b))
for edge_index in indices:
for vertex in edge_verts[edge_index]:
if not filled[vertex]:
array[vertex] = middle
if name in mesh.attributes:
mesh.attributes.remove(mesh.attributes[name])
layer = mesh.attributes.new(name=name, type='FLOAT', domain='POINT')
layer.data.foreach_set("value", array.astype(np.float32).tolist())
return int(filled.sum()), array
sg.graphs.clear_scene(keep_anchor=False)
print("scene cleared")scene clearedThe network
POINT rather than PLACE: one round trip instead of two, no geocoder, and a reproducible extent. Notebook 06 covers the choice and the float32 rounding that goes with it.
props = bpy.context.scene.scigraphs
props.osmnx_download_method = 'POINT'
props.osmnx_network_type = NETWORK_TYPE
props.osmnx_simplify = True
props.osmnx_retain_all = False
props.osmnx_truncate_by_edge = True
props.osmnx_retain_geometry = True
props.osmnx_custom_filter_preset = 'NONE'
props.osmnx_custom_filter_text = ""
props.osmnx_which_result = 0
props.osmnx_scale = 0.001
props.osmnx_place_name = ""
props.osmnx_address = ""
props.osmnx_polygon_object = ""
props.osmnx_latitude, props.osmnx_longitude = CENTER
props.osmnx_distance = RADIUS_M
with nb.quiet():
result = bpy.ops.scigraphs.import_osm_graph()
net = bpy.context.active_object
net.name = "Net_CiutatVella_drive"
G = graph_cache.get_osmnx_graph(net)
print(f"import_osm_graph -> {'/'.join(result)}")
print(f"{G.number_of_nodes()} intersections, {G.number_of_edges()} street "
f"segments, {net.get('total_length_m') / 1000:.1f} km")
print(f"mesh: {len(net.data.vertices)} vertices, {len(net.data.edges)} edges")
check("the network is in the scene",
net is not None and bool(net.get("is_osmnx")))
Downloading OSM network (POINT)...
Point: (39.46989822387695, -0.37630000710487366), radius: 600m
Download completed in 0.44s
Total import time: 0.47s
Nodes: 243, Edges: 375
Creating OSMnx graph: 243 nodes, 375 edges...
Created 243 intersection vertices
Created 361 street edges in 0.01s
Total OSMnx graph creation time: 0.01s
Graph saved to ~/.config/blender/5.2/scripts/addons/scigraphs_osmnx_cache/39.4699_-0.3763_drive.graphml
Graph cached to: ~/.config/blender/5.2/scripts/addons/scigraphs_osmnx_cache/39.4699_-0.3763_drive.graphml
Info: Downloading network from OpenStreetMap (POINT)...
Info: Graph cached as: 39.4699_-0.3763_drive.graphml
Info: Imported: 243 intersections, 375 street segments, 31.8 km total
import_osm_graph -> FINISHED
243 intersections, 375 street segments, 31.8 km
mesh: 1374 vertices, 1492 edges
[PASS] the network is in the sceneTrueIs this the graph that was asked for?
Two ways to end up with a different network and no error.
The graph cache key does not identify the graph. generate_cache_filename (core/osmnx/cache.py:78-105) builds the GraphML name from the coordinates and the network type only; for POINT it is f"{lat:.4f}_{lon:.4f}" (data_operators.py:659), omitting the radius, simplify, retain_all and any custom filter. Every download here writes 39.4699_-0.3763_drive.graphml, and osmnx_load_cached_graph hands back whichever wrote last. The import goes through OSMnx’s own HTTP cache, which is keyed on the full query, so this notebook is safe; a workflow that reloads from the add-on’s cache is not.
The cleaning operators replace the cached graph and never rebuild the mesh. osmnx_simplify, osmnx_consolidate, osmnx_to_undirected, osmnx_to_digraph, osmnx_largest_component and both truncations all swap the MultiDiGraph in the importer’s dictionary and stop (graph_operators.py:477-480, 518-521, 575-578, 663-666, 707-710, 754-757; spatial_operators.py:949-952, 1032-1035); notebook 06 covers it in full. Routing reads the graph, the figures read the mesh; once they describe different networks, so do the numbers and the pictures. Neither is called below; the check is cheap, so it is made anyway.
def graph_and_mesh_agree(graph, obj):
return (int(obj.get("num_nodes") or 0) == graph.number_of_nodes()
and int(obj.get("num_edges") or 0) == graph.number_of_edges())
furthest = max(float(ox.distance.great_circle(
CENTER[0], CENTER[1], data["y"], data["x"]))
for _n, data in G.nodes(data=True))
print(f"requested radius {RADIUS_M} m")
print(f"furthest node from the center {furthest:.0f} m "
f"({100 * furthest / RADIUS_M - 100:+.0f} %)")
print(f"graph says {G.number_of_nodes()} nodes / {G.number_of_edges()} edges; "
f"the object says {net.get('num_nodes')} / {net.get('num_edges')}")
check("the extract is about the size that was asked for",
RADIUS_M <= furthest < 2.0 * RADIUS_M,
"it reaches half as far again past the disc, because "
"`truncate_by_edge=True` keeps every edge with one end inside and a "
"simplified edge can be a whole block long. The right order of "
"magnitude is what this check is for")
check("the mesh and the routing graph are the same network",
graph_and_mesh_agree(G, net),
"if a cleaning operator had run, this is the check that would have "
"caught it, and nothing else would")requested radius 600 m
furthest node from the center 942 m (+57 %)
graph says 243 nodes / 375 edges; the object says 243 / 375
[PASS] the extract is about the size that was asked for — it reaches half as far again past the disc, because `truncate_by_edge=True` keeps every edge with one end inside and a simplified edge can be a whole block long. The right order of magnitude is what this check is for
[PASS] the mesh and the routing graph are the same network — if a cleaning operator had run, this is the check that would have caught it, and nothing else wouldTrueWhich nodes can actually be routed between
A drive graph is directed. Weak connectivity ignores the one-way signs; strong connectivity respects them and is the only one that answers “can I drive from here to there”. Every origin-destination sample below is drawn from the largest strongly connected component: a pair from outside it fails, and a statistic over the pairs that succeeded describes connectivity, not distance.
weak = max(nx.weakly_connected_components(G), key=len)
strong = max(nx.strongly_connected_components(G), key=len)
routable = sorted(strong)
print(f"nodes {G.number_of_nodes()}")
print(f"largest weakly connected {len(weak)}")
print(f"largest strongly connected {len(strong)} "
f"({100 * len(strong) / G.number_of_nodes():.0f} %)")
print(f"nodes you can drive out of but not into, or the reverse: "
f"{len(weak) - len(strong)}")
check("the one-way system costs a fifth of the nodes",
len(strong) < len(weak),
f"{len(weak) - len(strong)} of {len(weak)} nodes are in the network "
"but not in the part of it that is round-trip reachable")nodes 243
largest weakly connected 243
largest strongly connected 198 (81 %)
nodes you can drive out of but not into, or the reverse: 45
[PASS] the one-way system costs a fifth of the nodes — 45 of 243 nodes are in the network but not in the part of it that is round-trip reachableTrue1 · A route starts from a coordinate, not from a node
Routing questions are asked about places: an address, a click in the viewport, a GPS fix. The place is silently replaced by the nearest node, never reported next to the answer, and it is the largest source of error in a short route. SciGraphs has six operators for it:
| Operator | Kind | What it does |
|---|---|---|
osmnx_select_nearest_node |
modal | click, snap, store the id |
osmnx_select_nearest_edge |
modal | the same for a street segment |
osmnx_select_path_source |
modal | click, and set the routing source |
osmnx_select_path_target |
modal | click, and set the routing target |
osmnx_use_selected_source |
plain | copy the last selection into the source |
osmnx_use_selected_target |
plain | copy it into the target |
The four modal ones need a 3D viewport, a mouse and an event loop, so they cannot run under blender -b, which is how verify_notebooks.py runs this file. They call find_nearest_node / find_nearest_edge in SciGraphs/core/osmnx/spatial_queries.py, which is what this section measures.
The click is un-projected with a flat-earth approximation, a fixed meters-per-degree at the graph’s center latitude (
spatial_operators.py:235-243and again at:473-481). Over 600 m that is worth a few centimeters. Over a city-sized graph it is not, and there is no warning.

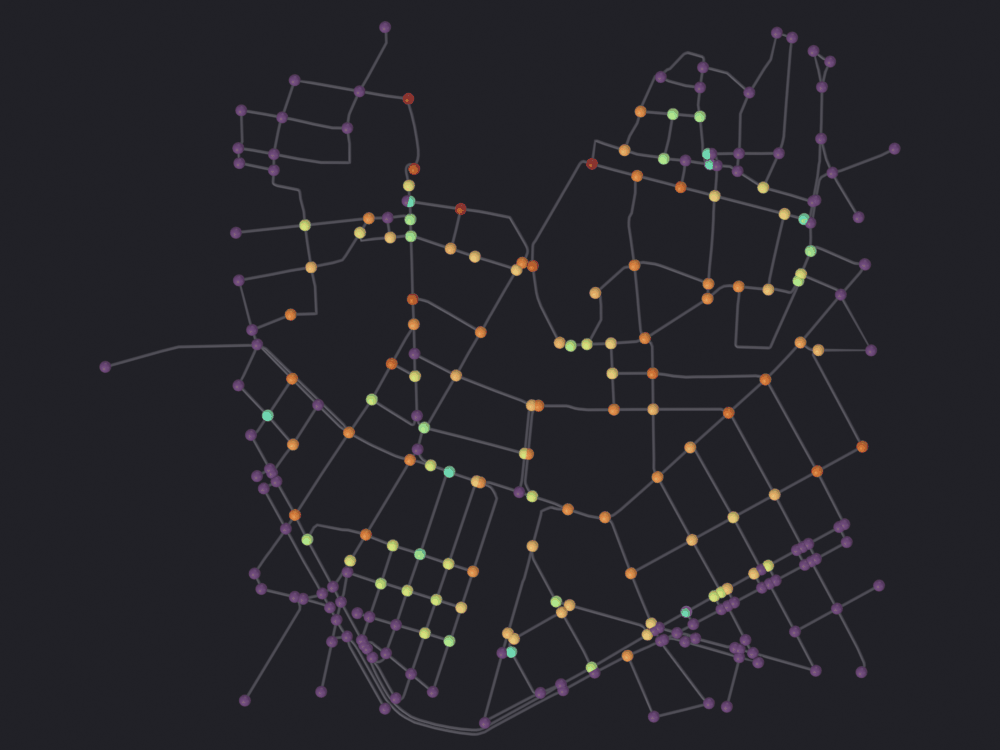

How far is the nearest node?
Five hundred points drawn uniformly over the study disc, fixed seed, snapped with ox.distance.nearest_nodes, which is what the operators reach.
rng = np.random.default_rng(20260812)
SAMPLES = 500
radius = RADIUS_M * np.sqrt(rng.random(SAMPLES))
angle = rng.random(SAMPLES) * 2 * math.pi
sample_lat = CENTER[0] + (radius * np.sin(angle)) / M_PER_DEG_LAT
sample_lon = CENTER[1] + (radius * np.cos(angle)) / M_PER_DEG_LON
snapped, snap_m = ox.distance.nearest_nodes(
G, X=sample_lon, Y=sample_lat, return_dist=True)
snap_m = np.asarray(snap_m, dtype=float)
print(f"{SAMPLES} points snapped to {len(set(snapped))} distinct nodes "
f"of {G.number_of_nodes()}")
print(f" median {np.percentile(snap_m, 50):6.1f} m")
print(f" 90th {np.percentile(snap_m, 90):6.1f} m")
print(f" 99th {np.percentile(snap_m, 99):6.1f} m")
print(f" worst {snap_m.max():6.1f} m")
check("snapping is not a rounding error",
np.percentile(snap_m, 50) > 25,
f"the median point is {np.percentile(snap_m, 50):.0f} m from the "
"node that will stand in for it")500 points snapped to 117 distinct nodes of 243
median 49.7 m
90th 95.3 m
99th 187.9 m
worst 213.9 m
[PASS] snapping is not a rounding error — the median point is 50 m from the node that will stand in for itTrueThe nearest edge is closer, and in a different unit
Most places are halfway down a block, where the edge that passes is far closer than either of its endpoints. nearest_edges finds it, and returns the distance in the graph’s own units. This graph is unprojected (EPSG:4326), so nearest_edges(..., return_dist=True) returns degrees while nearest_nodes(..., return_dist=True) on the same graph returns meters, because that one goes through a great-circle formula and this one does not. SciGraphs/core/osmnx/distance.py:100-129 passes both straight through and documents neither: same call signature, same graph, units apart by a factor of about a hundred thousand.
A degree is also not isotropic. At this latitude a degree of longitude is 77 % of a degree of latitude, so the same “distance” in degrees means different things depending on which way the offset points. Converting needs a direction the value does not carry; the figure below uses the latitude conversion, an upper bound.
near_edges, edge_deg = ox.distance.nearest_edges(
G, X=sample_lon, Y=sample_lat, return_dist=True)
edge_deg = np.asarray(edge_deg, dtype=float)
edge_m = np.array([meters(d) for d in edge_deg])
print(f"nearest_nodes median {np.percentile(snap_m, 50):8.1f} meters")
print(f"nearest_edges median {np.percentile(edge_deg, 50):8.6f} degrees "
f"(= {np.percentile(edge_m, 50):.1f} m at this latitude)")
print(f"node distance / edge distance, median ratio "
f"{np.percentile(snap_m / np.maximum(edge_m, 1e-9), 50):.2f}")
print(f"a degree of longitude here is "
f"{M_PER_DEG_LON / M_PER_DEG_LAT * 100:.0f} % of a degree of latitude")
check("the two nearest-* calls do not return the same unit",
np.percentile(edge_deg, 50) < 0.01 < np.percentile(snap_m, 50),
"degrees from one, meters from the other, and nothing says so")nearest_nodes median 49.7 meters
nearest_edges median 0.000196 degrees (= 21.8 m at this latitude)
node distance / edge distance, median ratio 1.76
a degree of longitude here is 77 % of a degree of latitude
[PASS] the two nearest-* calls do not return the same unit — degrees from one, meters from the other, and nothing says soTrueSnapping to the nearest edge and splitting it is how a real router starts a trip from a doorway. Neither SciGraphs nor OSMnx does that:
osmnx_shortest_pathtakes node ids, so the doorway becomes a junction up to a block away. That half-block of error is not in any number the operator reports.
The two numpy fallbacks, and what they cost
find_nearest_node and find_nearest_edge catch any exception from OSMnx and fall back to their own implementation. Neither fallback is equivalent to what it replaces.
_find_nearest_node_numpy(spatial_queries.py:70) computes a plain Euclidean distance in degrees. A degree of longitude is shorter than one of latitude, so the metric is stretched along one axis and the answer is sometimes a different node._find_nearest_edge_numpy(spatial_queries.py:151-155) measures to each edge’s midpoint rather than to the segment. For a long street that midpoint can be a hundred meters from the part you are standing next to.
Both are measured against the OSMnx answer on the same 200 points.
CHECK = 200
fallback_nodes = [spatial._find_nearest_node_numpy(G, x, y)
for x, y in zip(sample_lon[:CHECK], sample_lat[:CHECK])]
node_wrong = [i for i in range(CHECK) if fallback_nodes[i] != snapped[i]]
penalty = []
for i in node_wrong:
chosen = G.nodes[fallback_nodes[i]]
penalty.append(float(ox.distance.great_circle(
sample_lat[i], sample_lon[i], chosen["y"], chosen["x"])) - snap_m[i])
fallback_edges = [spatial._find_nearest_edge_numpy(G, x, y)
for x, y in zip(sample_lon[:CHECK], sample_lat[:CHECK])]
edge_wrong = sum(1 for i in range(CHECK)
if tuple(fallback_edges[i]) != tuple(near_edges[i]))
print(f"node fallback (degrees as if meters) "
f"{len(node_wrong):3d} of {CHECK} points get a different node")
if penalty:
print(f" and land {np.median(penalty):.1f} m further away (median), "
f"{max(penalty):.1f} m at worst")
print(f"edge fallback (distance to midpoints) "
f"{edge_wrong:3d} of {CHECK} points get a different edge")
check("the fallbacks are not equivalent to what they replace",
len(node_wrong) > 0 and edge_wrong > 0,
"they are only reached when OSMnx raises, but when they are reached "
"nothing says the answer changed")Nearest node (numpy fallback) to (39.47105111726969, -0.37594391412987666): 5902824970
Nearest node (numpy fallback) to (39.47505780070552, -0.3773343719577244): 1287585219
Nearest node (numpy fallback) to (39.47083356638346, -0.3788942037189866): 29935874
Nearest node (numpy fallback) to (39.469961715676824, -0.3700938999333814): 52748784
Nearest node (numpy fallback) to (39.468055944009315, -0.37253435341636637): 25767367
Nearest node (numpy fallback) to (39.470201930131594, -0.3748155852618441): 25767318
Nearest node (numpy fallback) to (39.46764761065589, -0.38065687138238335): 30886310
Nearest node (numpy fallback) to (39.47132231474527, -0.379419107015174): 29935873
Nearest node (numpy fallback) to (39.470969984513765, -0.3811176557837066): 30065880
Nearest node (numpy fallback) to (39.46836976802684, -0.37585432185761464): 35594367
Nearest node (numpy fallback) to (39.47503220657647, -0.3773221521354979): 1287585219
Nearest node (numpy fallback) to (39.46588301699723, -0.3784096527695869): 34366741
Nearest node (numpy fallback) to (39.46528958059703, -0.37390923027089645): 4286093908
Nearest node (numpy fallback) to (39.47373526564205, -0.3760544589868082): 1287585219
Nearest node (numpy fallback) to (39.47200319402059, -0.37889038238659084): 1771271224
Nearest node (numpy fallback) to (39.47493992468286, -0.3786601404994275): 30378587
Nearest node (numpy fallback) to (39.46547702386258, -0.37645485127487816): 79669550
Nearest node (numpy fallback) to (39.4751348674412, -0.3761088892174001): 1287585219
Nearest node (numpy fallback) to (39.473185489335854, -0.3813448785744067): 29935866
Nearest node (numpy fallback) to (39.471556364712356, -0.37772356499425086): 33225025
Nearest node (numpy fallback) to (39.474941454320955, -0.37724018221608413): 1287585219
Nearest node (numpy fallback) to (39.468640593229665, -0.37389259672829167): 25767432
Nearest node (numpy fallback) to (39.47213814986014, -0.37300402652768644): 55597081
Nearest node (numpy fallback) to (39.466741114423094, -0.37677545804728163): 34853540
Nearest node (numpy fallback) to (39.472473921223454, -0.3803009865483): 30065887
Nearest node (numpy fallback) to (39.47224879244779, -0.3814720384555237): 30036972
Nearest node (numpy fallback) to (39.47345758411732, -0.37782708582995017): 1992142895
Nearest node (numpy fallback) to (39.47137734979438, -0.37260411165940144): 55597081
Nearest node (numpy fallback) to (39.467688481736786, -0.3783055535408235): 33358135
Nearest node (numpy fallback) to (39.46870637498683, -0.3769491512638485): 25767450
Nearest node (numpy fallback) to (39.47018044374309, -0.3821794693429141): 30886267
Nearest node (numpy fallback) to (39.46860197510902, -0.37608281608488087): 35594370
Nearest node (numpy fallback) to (39.46934801083286, -0.37833612294615376): 25767311
Nearest node (numpy fallback) to (39.467339933385254, -0.37847987175084585): 33358135
Nearest node (numpy fallback) to (39.46620589214742, -0.3753757868652542): 7811022864
Nearest node (numpy fallback) to (39.46984206496242, -0.3693613706175535): 52748784
Nearest node (numpy fallback) to (39.469457414269556, -0.38087550488819905): 30065881
Nearest node (numpy fallback) to (39.47197714228736, -0.370089400724322): 56207844
Nearest node (numpy fallback) to (39.468619684712095, -0.3758483327223622): 35594370
Nearest node (numpy fallback) to (39.47076743073654, -0.380643311420114): 30065880
Nearest node (numpy fallback) to (39.47109154065375, -0.37494010770393804): 7515834823
Nearest node (numpy fallback) to (39.46510371532474, -0.3768540189782416): 2823683624
Nearest node (numpy fallback) to (39.47287041480276, -0.37954600026585494): 29935869
Nearest node (numpy fallback) to (39.473199298980624, -0.3796596116820162): 30378523
Nearest node (numpy fallback) to (39.47084528223716, -0.3727239442505837): 25767437
Nearest node (numpy fallback) to (39.46958951735227, -0.3788063145442524): 25767311
Nearest node (numpy fallback) to (39.470488300373155, -0.378479953712338): 7663660953
Nearest node (numpy fallback) to (39.4661701952792, -0.3750524497031651): 34853528
Nearest node (numpy fallback) to (39.46537085431734, -0.37297113287022277): 108326138
Nearest node (numpy fallback) to (39.470569764206424, -0.38283718551278456): 29935845
Nearest node (numpy fallback) to (39.47200081995694, -0.37795393170286423): 33214682
Nearest node (numpy fallback) to (39.47195542362554, -0.3760202249777272): 35594402
Nearest node (numpy fallback) to (39.47487599792111, -0.37762773687979573): 1992142895
Nearest node (numpy fallback) to (39.46665557057173, -0.3718458890536363): 52748282
Nearest node (numpy fallback) to (39.46502218924312, -0.3759665571638827): 34853534
Nearest node (numpy fallback) to (39.46800474756127, -0.37972997197643904): 30886320
Nearest node (numpy fallback) to (39.46860860096874, -0.3807485366386805): 29935835
Nearest node (numpy fallback) to (39.46746305435256, -0.37474973369492487): 25767293
Nearest node (numpy fallback) to (39.47267257376203, -0.3704721726497724): 1287585221
Nearest node (numpy fallback) to (39.473597198319155, -0.37363644089521597): 60707887
Nearest node (numpy fallback) to (39.46960495909975, -0.37403163321440414): 25767434
Nearest node (numpy fallback) to (39.46854846694908, -0.37032094722968795): 52748288
Nearest node (numpy fallback) to (39.46932848110651, -0.37196894202754316): 25767365
Nearest node (numpy fallback) to (39.47485796522719, -0.375703285423078): 1287585219
Nearest node (numpy fallback) to (39.47211234015133, -0.38030889247395827): 30065887
Nearest node (numpy fallback) to (39.47276865177195, -0.3796378639780286): 29935869
Nearest node (numpy fallback) to (39.473159607454555, -0.37455604325407094): 1287585331
Nearest node (numpy fallback) to (39.46604753095881, -0.37569299743520845): 7811022864
Nearest node (numpy fallback) to (39.466002105065066, -0.3775476011202744): 34366741
Nearest node (numpy fallback) to (39.46857895388009, -0.376058154780824): 35594370
Nearest node (numpy fallback) to (39.47097839214474, -0.38004599027268093): 29935873
Nearest node (numpy fallback) to (39.469755102370904, -0.37006630200475155): 52748784
Nearest node (numpy fallback) to (39.4709266429987, -0.3802119203931852): 29935874
Nearest node (numpy fallback) to (39.474985576401735, -0.3751173560055496): 60707884
Nearest node (numpy fallback) to (39.467538952401554, -0.3811223582142991): 30886310
Nearest node (numpy fallback) to (39.468232601982535, -0.38270745260828537): 30886269
Nearest node (numpy fallback) to (39.47335659209643, -0.3802143961347175): 691122207
Nearest node (numpy fallback) to (39.46658585002366, -0.3710246461462865): 208232446
Nearest node (numpy fallback) to (39.47379635295531, -0.37631666650466206): 1287585219
Nearest node (numpy fallback) to (39.471146081984614, -0.38287736179346954): 29935845
Nearest node (numpy fallback) to (39.467271255889116, -0.37807159235482257): 33358134
Nearest node (numpy fallback) to (39.47402815144888, -0.37803113447129416): 1992142895
Nearest node (numpy fallback) to (39.46750012757259, -0.3821427152197536): 30886306
Nearest node (numpy fallback) to (39.47190672240746, -0.38142092912639214): 30036972
Nearest node (numpy fallback) to (39.47148895232536, -0.3698413416429907): 56207849
Nearest node (numpy fallback) to (39.47405534336397, -0.37706279035442225): 1287585219
Nearest node (numpy fallback) to (39.47001875600017, -0.3755201466356452): 25767326
Nearest node (numpy fallback) to (39.4709511811801, -0.3810830234020444): 30065880
Nearest node (numpy fallback) to (39.46647349911053, -0.37980820375711954): 34366709
Nearest node (numpy fallback) to (39.46760141213127, -0.38048664315630437): 30886310
Nearest node (numpy fallback) to (39.47470777359539, -0.3740136238253712): 60707884
Nearest node (numpy fallback) to (39.47277698707668, -0.37273770421252633): 1287585314
Nearest node (numpy fallback) to (39.46996876757081, -0.3822170202838183): 30886267
Nearest node (numpy fallback) to (39.46765509243919, -0.373642406939709): 25767369
Nearest node (numpy fallback) to (39.471382800059395, -0.3719253801021103): 55597023
Nearest node (numpy fallback) to (39.46568537683803, -0.3791372532107931): 34366716
Nearest node (numpy fallback) to (39.47425283840754, -0.37852726014145016): 30378599
Nearest node (numpy fallback) to (39.46593849503287, -0.3795905234766392): 34366719
Nearest node (numpy fallback) to (39.47162192014565, -0.37676340391620466): 35594402
Nearest node (numpy fallback) to (39.46913409228501, -0.37089000538076267): 25767364
Nearest node (numpy fallback) to (39.46956152230158, -0.3742548502143046): 25767434
Nearest node (numpy fallback) to (39.474479648766625, -0.37621489272774394): 1287585219
Nearest node (numpy fallback) to (39.46968039596568, -0.37651980459034834): 35594370
Nearest node (numpy fallback) to (39.46650588368538, -0.37117218696400867): 208232446
Nearest node (numpy fallback) to (39.46592038963232, -0.3808659757248246): 34366723
Nearest node (numpy fallback) to (39.47136484742463, -0.3739556644772068): 25767444
Nearest node (numpy fallback) to (39.46563690146133, -0.37606048415706866): 79669550
Nearest node (numpy fallback) to (39.472335993819776, -0.37945530376378817): 29935870
Nearest node (numpy fallback) to (39.471927245760924, -0.3782606928490374): 33214682
Nearest node (numpy fallback) to (39.46589667440482, -0.3799960347663558): 34366719
Nearest node (numpy fallback) to (39.46493980784248, -0.37767945374637685): 2823683637
Nearest node (numpy fallback) to (39.46772199638758, -0.38015224554956684): 30886320
Nearest node (numpy fallback) to (39.47154707641059, -0.37542603637451116): 7515834823
Nearest node (numpy fallback) to (39.4701990723847, -0.37390627481209665): 25767435
Nearest node (numpy fallback) to (39.46994805933505, -0.37919080184875553): 30886277
Nearest node (numpy fallback) to (39.47033178642162, -0.38182806336837316): 30886267
Nearest node (numpy fallback) to (39.4687311107592, -0.37300583897739337): 25767367
Nearest node (numpy fallback) to (39.470325910019014, -0.3756154541437138): 25767326
Nearest node (numpy fallback) to (39.47251194668083, -0.37699040684538426): 35594407
Nearest node (numpy fallback) to (39.47396513333233, -0.3772113283494194): 1992142895
Nearest node (numpy fallback) to (39.472264642528096, -0.37234833206428913): 55597081
Nearest node (numpy fallback) to (39.472273294418805, -0.37414939031843): 25767444
Nearest node (numpy fallback) to (39.4669272727677, -0.3820536277697909): 30886307
Nearest node (numpy fallback) to (39.4744484854663, -0.37293095673615495): 60707889
Nearest node (numpy fallback) to (39.46959380269609, -0.37081542537947376): 25767364
Nearest node (numpy fallback) to (39.472860443310765, -0.37953864824724115): 29935869
Nearest node (numpy fallback) to (39.474757996944334, -0.3776540932965795): 1992142895
Nearest node (numpy fallback) to (39.46662820725052, -0.37756579581948213): 34853540
Nearest node (numpy fallback) to (39.471024551789654, -0.37323378353925796): 25767437
Nearest node (numpy fallback) to (39.470580932427474, -0.37989035103797114): 29935874
Nearest node (numpy fallback) to (39.46951245923847, -0.3744115609213619): 25767319
Nearest node (numpy fallback) to (39.471349183019264, -0.37052473846898193): 55597160
Nearest node (numpy fallback) to (39.47277061198047, -0.37471110345153874): 1287585331
Nearest node (numpy fallback) to (39.47505040192908, -0.37594845072486144): 1287585219
Nearest node (numpy fallback) to (39.467892880771544, -0.3820584681133838): 30886269
Nearest node (numpy fallback) to (39.473154448276574, -0.38150519899943297): 29935866
Nearest node (numpy fallback) to (39.46654946533088, -0.37746264063061596): 34853540
Nearest node (numpy fallback) to (39.47036583505365, -0.37694305783551435): 5902824970
Nearest node (numpy fallback) to (39.470740320947364, -0.371896244954942): 55597023
Nearest node (numpy fallback) to (39.474108879356855, -0.37954561515807955): 30378599
Nearest node (numpy fallback) to (39.4692194869407, -0.38055929231536617): 30065881
Nearest node (numpy fallback) to (39.46785521455986, -0.38036144796981247): 30886320
Nearest node (numpy fallback) to (39.472822764953264, -0.37832398374678433): 1992142895
Nearest node (numpy fallback) to (39.46474322541641, -0.3768272286837133): 2823683624
Nearest node (numpy fallback) to (39.4649040155866, -0.37786304756419786): 2823683646
Nearest node (numpy fallback) to (39.470027192361556, -0.37240378569784127): 25767365
Nearest node (numpy fallback) to (39.47205329181223, -0.37918253908903354): 1771271224
Nearest node (numpy fallback) to (39.46869415555133, -0.37969525032283447): 31781815
Nearest node (numpy fallback) to (39.47030879251216, -0.37668334302420325): 5902824970
Nearest node (numpy fallback) to (39.46653465615674, -0.3710409819649325): 208232446
Nearest node (numpy fallback) to (39.468590445958654, -0.3772700902277722): 25767450
Nearest node (numpy fallback) to (39.46565077109537, -0.37955967125966517): 34366719
Nearest node (numpy fallback) to (39.46623933284029, -0.3753170046333551): 34853528
Nearest node (numpy fallback) to (39.46618601658669, -0.3784056259432004): 34366741
Nearest node (numpy fallback) to (39.47308134425687, -0.38087532885215064): 29935866
Nearest node (numpy fallback) to (39.46608990731833, -0.3737040595799239): 34853528
Nearest node (numpy fallback) to (39.46714442288928, -0.37253562365417325): 52748278
Nearest node (numpy fallback) to (39.47277886157959, -0.3744660155873711): 1287585331
Nearest node (numpy fallback) to (39.46800814750106, -0.37625611916738033): 35594367
Nearest node (numpy fallback) to (39.47469556955155, -0.37555673227182873): 1287585219
Nearest node (numpy fallback) to (39.472388275235375, -0.37699015111255163): 35594407
Nearest node (numpy fallback) to (39.4682144982354, -0.37351665531837874): 25767369
Nearest node (numpy fallback) to (39.46797370343442, -0.37291797463368537): 25767367
Nearest node (numpy fallback) to (39.47079040291764, -0.38302242105890477): 29935845
Nearest node (numpy fallback) to (39.46561932951515, -0.3721354107661092): 52748967
Nearest node (numpy fallback) to (39.46810883195777, -0.3786187223171289): 11615007621
Nearest node (numpy fallback) to (39.4669359534766, -0.37407681870868686): 34853528
Nearest node (numpy fallback) to (39.4721944744295, -0.37736199457883773): 35594407
Nearest node (numpy fallback) to (39.467309380285556, -0.3817280162563771): 30886307
Nearest node (numpy fallback) to (39.46508592933446, -0.3781152891000851): 34366738
Nearest node (numpy fallback) to (39.47002455352607, -0.37783428633978616): 7663660953
Nearest node (numpy fallback) to (39.466597794853165, -0.38100301779648443): 30886310
Nearest node (numpy fallback) to (39.471574951308476, -0.3726390233932688): 55597081
Nearest node (numpy fallback) to (39.46486187752148, -0.37753382264328256): 2823683637
Nearest node (numpy fallback) to (39.47221260425347, -0.3775770330972793): 33225025
Nearest node (numpy fallback) to (39.47240413338923, -0.3748984369341508): 25767444
Nearest node (numpy fallback) to (39.46741677720853, -0.38210700994796526): 30886306
Nearest node (numpy fallback) to (39.4712976392733, -0.3730157798198359): 25767437
Nearest node (numpy fallback) to (39.472770930270464, -0.37361594203618886): 1287585347
Nearest node (numpy fallback) to (39.46972743870009, -0.3702214588055834): 52748784
Nearest node (numpy fallback) to (39.47179394867268, -0.3706358653639524): 56207849
Nearest node (numpy fallback) to (39.47124673772274, -0.3746163163101388): 7515834823
Nearest node (numpy fallback) to (39.47035543261054, -0.3712878041192085): 25767364
Nearest node (numpy fallback) to (39.470030046109976, -0.3819640593910635): 30886267
Nearest node (numpy fallback) to (39.46938111360192, -0.374817054680391): 25767448
Nearest node (numpy fallback) to (39.470836400495614, -0.37441783347646596): 25767435
Nearest node (numpy fallback) to (39.47363411366193, -0.37713913347281247): 1992142895
Nearest node (numpy fallback) to (39.470725110377956, -0.3764504137626138): 5902824970
Nearest node (numpy fallback) to (39.470378424988276, -0.3810757516532031): 30065880
Nearest node (numpy fallback) to (39.4718550462569, -0.37052121130227156): 56207849
Nearest node (numpy fallback) to (39.468697393525176, -0.3819772280240773): 30886266
Nearest node (numpy fallback) to (39.46602620191928, -0.3736491251593953): 34853528
Nearest node (numpy fallback) to (39.47090864906598, -0.3749230600355775): 25767318
Nearest node (numpy fallback) to (39.474535249489065, -0.37501652542488023): 60707930
Nearest node (numpy fallback) to (39.47008181456808, -0.3789741822469974): 25767311
Nearest node (numpy fallback) to (39.4724632708869, -0.3733822043399974): 1287585347
Nearest node (numpy fallback) to (39.46648646138511, -0.3733809390497139): 52748278
Nearest node (numpy fallback) to (39.47176187184722, -0.3697657173889782): 56207844
Nearest node (numpy fallback) to (39.4655163093376, -0.37955232533583233): 34366719
Nearest node (numpy fallback) to (39.47242683626822, -0.3779494298129901): 33214682
Nearest edge (numpy fallback) to (39.47105111726969, -0.37594391412987666): (35594402, 5902824970, 0)
Nearest edge (numpy fallback) to (39.47505780070552, -0.3773343719577244): (30378587, 30378599, 0)
Nearest edge (numpy fallback) to (39.47083356638346, -0.3788942037189866): (7663660953, 29935873, 0)
Nearest edge (numpy fallback) to (39.469961715676824, -0.3700938999333814): (52748784, 25767363, 0)
Nearest edge (numpy fallback) to (39.468055944009315, -0.37253435341636637): (52748282, 25767367, 0)
Nearest edge (numpy fallback) to (39.470201930131594, -0.3748155852618441): (25767319, 25767318, 0)
Nearest edge (numpy fallback) to (39.46764761065589, -0.38065687138238335): (30886310, 30886320, 0)
Nearest edge (numpy fallback) to (39.47132231474527, -0.379419107015174): (29935873, 29935874, 0)
Nearest edge (numpy fallback) to (39.470969984513765, -0.3811176557837066): (29935852, 30036972, 0)
Nearest edge (numpy fallback) to (39.46836976802684, -0.37585432185761464): (35594370, 25767448, 0)
Nearest edge (numpy fallback) to (39.47503220657647, -0.3773221521354979): (30378587, 30378599, 0)
Nearest edge (numpy fallback) to (39.46588301699723, -0.3784096527695869): (34366738, 34366741, 0)
Nearest edge (numpy fallback) to (39.46528958059703, -0.37390923027089645): (108326379, 4286093908, 0)
Nearest edge (numpy fallback) to (39.47373526564205, -0.3760544589868082): (1287585219, 35594402, 0)
Nearest edge (numpy fallback) to (39.47200319402059, -0.37889038238659084): (1771271224, 33214682, 0)
Nearest edge (numpy fallback) to (39.47493992468286, -0.3786601404994275): (30378587, 30378599, 0)
Nearest edge (numpy fallback) to (39.46547702386258, -0.37645485127487816): (79669550, 34853534, 0)
Nearest edge (numpy fallback) to (39.4751348674412, -0.3761088892174001): (1287585219, 60707930, 0)
Nearest edge (numpy fallback) to (39.473185489335854, -0.3813448785744067): (29935864, 29935866, 0)
Nearest edge (numpy fallback) to (39.471556364712356, -0.37772356499425086): (33225025, 33214682, 0)
Nearest edge (numpy fallback) to (39.474941454320955, -0.37724018221608413): (1287585219, 35594402, 0)
Nearest edge (numpy fallback) to (39.468640593229665, -0.37389259672829167): (25767432, 25767369, 0)
Nearest edge (numpy fallback) to (39.47213814986014, -0.37300402652768644): (55597081, 1287585314, 0)
Nearest edge (numpy fallback) to (39.466741114423094, -0.37677545804728163): (25767446, 34853540, 0)
Nearest edge (numpy fallback) to (39.472473921223454, -0.3803009865483): (30065887, 29935865, 0)
Nearest edge (numpy fallback) to (39.47224879244779, -0.3814720384555237): (29935852, 30036972, 0)
Nearest edge (numpy fallback) to (39.47345758411732, -0.37782708582995017): (35594407, 1992142895, 0)
Nearest edge (numpy fallback) to (39.47137734979438, -0.37260411165940144): (25767437, 55597081, 0)
Nearest edge (numpy fallback) to (39.467688481736786, -0.3783055535408235): (33358134, 33358135, 0)
Nearest edge (numpy fallback) to (39.46870637498683, -0.3769491512638485): (25767295, 25767450, 0)
Nearest edge (numpy fallback) to (39.47018044374309, -0.3821794693429141): (30886266, 30886267, 0)
Nearest edge (numpy fallback) to (39.46860197510902, -0.37608281608488087): (35594370, 25767448, 0)
Nearest edge (numpy fallback) to (39.46934801083286, -0.37833612294615376): (25767311, 25767295, 0)
Nearest edge (numpy fallback) to (39.467339933385254, -0.37847987175084585): (33358135, 34366714, 0)
Nearest edge (numpy fallback) to (39.46620589214742, -0.3753757868652542): (34853528, 25767293, 0)
Nearest edge (numpy fallback) to (39.46984206496242, -0.3693613706175535): (52748781, 52748784, 0)
Nearest edge (numpy fallback) to (39.469457414269556, -0.38087550488819905): (30065881, 29935835, 0)
Nearest edge (numpy fallback) to (39.47197714228736, -0.370089400724322): (56207849, 56207844, 0)
Nearest edge (numpy fallback) to (39.468619684712095, -0.3758483327223622): (35594370, 25767448, 0)
Nearest edge (numpy fallback) to (39.47076743073654, -0.380643311420114): (29935874, 30065880, 0)
Nearest edge (numpy fallback) to (39.47109154065375, -0.37494010770393804): (25767326, 7515834823, 0)
Nearest edge (numpy fallback) to (39.46510371532474, -0.3768540189782416): (2823683624, 34853534, 0)
Nearest edge (numpy fallback) to (39.47287041480276, -0.37954600026585494): (29935869, 30378523, 0)
Nearest edge (numpy fallback) to (39.473199298980624, -0.3796596116820162): (30378523, 691122207, 0)
Nearest edge (numpy fallback) to (39.47084528223716, -0.3727239442505837): (25767437, 55597081, 0)
Nearest edge (numpy fallback) to (39.46958951735227, -0.3788063145442524): (31781815, 25767311, 0)
Nearest edge (numpy fallback) to (39.470488300373155, -0.378479953712338): (25767311, 7663660953, 0)
Nearest edge (numpy fallback) to (39.4661701952792, -0.3750524497031651): (34853528, 25767293, 0)
Nearest edge (numpy fallback) to (39.46537085431734, -0.37297113287022277): (108325960, 108326138, 0)
Nearest edge (numpy fallback) to (39.470569764206424, -0.38283718551278456): (29935837, 29935845, 0)
Nearest edge (numpy fallback) to (39.47200081995694, -0.37795393170286423): (33225025, 33214682, 0)
Nearest edge (numpy fallback) to (39.47195542362554, -0.3760202249777272): (1287585219, 35594402, 0)
Nearest edge (numpy fallback) to (39.47487599792111, -0.37762773687979573): (30378587, 30378599, 0)
Nearest edge (numpy fallback) to (39.46665557057173, -0.3718458890536363): (29834287, 52748282, 0)
Nearest edge (numpy fallback) to (39.46502218924312, -0.3759665571638827): (34853534, 34853536, 0)
Nearest edge (numpy fallback) to (39.46800474756127, -0.37972997197643904): (4682062491, 30886320, 0)
Nearest edge (numpy fallback) to (39.46860860096874, -0.3807485366386805): (30886320, 29935835, 0)
Nearest edge (numpy fallback) to (39.46746305435256, -0.37474973369492487): (25767369, 25767293, 0)
Nearest edge (numpy fallback) to (39.47267257376203, -0.3704721726497724): (1287585224, 1287585221, 0)
Nearest edge (numpy fallback) to (39.473597198319155, -0.37363644089521597): (1287585347, 1287585331, 0)
Nearest edge (numpy fallback) to (39.46960495909975, -0.37403163321440414): (25767434, 25767432, 0)
Nearest edge (numpy fallback) to (39.46854846694908, -0.37032094722968795): (52748288, 25767364, 0)
Nearest edge (numpy fallback) to (39.46932848110651, -0.37196894202754316): (25767364, 25767365, 0)
Nearest edge (numpy fallback) to (39.47485796522719, -0.375703285423078): (1287585219, 60707930, 0)
Nearest edge (numpy fallback) to (39.47211234015133, -0.38030889247395827): (29935870, 30065887, 0)
Nearest edge (numpy fallback) to (39.47276865177195, -0.3796378639780286): (29935869, 30378523, 0)
Nearest edge (numpy fallback) to (39.473159607454555, -0.37455604325407094): (1287585331, 25767444, 0)
Nearest edge (numpy fallback) to (39.46604753095881, -0.37569299743520845): (79669550, 7811022864, 0)
Nearest edge (numpy fallback) to (39.466002105065066, -0.3775476011202744): (34853540, 2823683637, 0)
Nearest edge (numpy fallback) to (39.46857895388009, -0.376058154780824): (35594370, 25767448, 0)
Nearest edge (numpy fallback) to (39.47097839214474, -0.38004599027268093): (29935873, 29935874, 0)
Nearest edge (numpy fallback) to (39.469755102370904, -0.37006630200475155): (52748784, 25767363, 0)
Nearest edge (numpy fallback) to (39.4709266429987, -0.3802119203931852): (29935873, 29935874, 0)
Nearest edge (numpy fallback) to (39.474985576401735, -0.3751173560055496): (60707884, 60707930, 0)
Nearest edge (numpy fallback) to (39.467538952401554, -0.3811223582142991): (30886310, 30886320, 0)
Nearest edge (numpy fallback) to (39.468232601982535, -0.38270745260828537): (29834290, 30886269, 0)
Nearest edge (numpy fallback) to (39.47335659209643, -0.3802143961347175): (30378523, 691122207, 0)
Nearest edge (numpy fallback) to (39.46658585002366, -0.3710246461462865): (208232416, 208232446, 0)
Nearest edge (numpy fallback) to (39.47379635295531, -0.37631666650466206): (1287585219, 35594402, 0)
Nearest edge (numpy fallback) to (39.471146081984614, -0.38287736179346954): (29935837, 29935845, 0)
Nearest edge (numpy fallback) to (39.467271255889116, -0.37807159235482257): (34366741, 33358134, 0)
Nearest edge (numpy fallback) to (39.47402815144888, -0.37803113447129416): (30378523, 1992142895, 0)
Nearest edge (numpy fallback) to (39.46750012757259, -0.3821427152197536): (29935835, 30886306, 0)
Nearest edge (numpy fallback) to (39.47190672240746, -0.38142092912639214): (29935852, 30036972, 0)
Nearest edge (numpy fallback) to (39.47148895232536, -0.3698413416429907): (1828082336, 56207849, 0)
Nearest edge (numpy fallback) to (39.47405534336397, -0.37706279035442225): (1287585219, 35594402, 0)
Nearest edge (numpy fallback) to (39.47001875600017, -0.3755201466356452): (11420770020, 25767326, 0)
Nearest edge (numpy fallback) to (39.4709511811801, -0.3810830234020444): (29935874, 30065880, 0)
Nearest edge (numpy fallback) to (39.46647349911053, -0.37980820375711954): (34366725, 34366709, 0)
Nearest edge (numpy fallback) to (39.46760141213127, -0.38048664315630437): (30886310, 30886320, 0)
Nearest edge (numpy fallback) to (39.47470777359539, -0.3740136238253712): (60707884, 60707886, 0)
Nearest edge (numpy fallback) to (39.47277698707668, -0.37273770421252633): (1287585314, 1287585347, 0)
Nearest edge (numpy fallback) to (39.46996876757081, -0.3822170202838183): (30886266, 30886267, 0)
Nearest edge (numpy fallback) to (39.46765509243919, -0.373642406939709): (25767369, 52748278, 0)
Nearest edge (numpy fallback) to (39.471382800059395, -0.3719253801021103): (25767437, 55597023, 0)
Nearest edge (numpy fallback) to (39.46568537683803, -0.3791372532107931): (34366714, 34366716, 0)
Nearest edge (numpy fallback) to (39.47425283840754, -0.37852726014145016): (30378587, 30378599, 0)
Nearest edge (numpy fallback) to (39.46593849503287, -0.3795905234766392): (34366709, 34366719, 0)
Nearest edge (numpy fallback) to (39.47162192014565, -0.37676340391620466): (35594407, 35594402, 0)
Nearest edge (numpy fallback) to (39.46913409228501, -0.37089000538076267): (52748288, 25767364, 0)
Nearest edge (numpy fallback) to (39.46956152230158, -0.3742548502143046): (25767434, 25767319, 0)
Nearest edge (numpy fallback) to (39.474479648766625, -0.37621489272774394): (1287585219, 60707930, 0)
Nearest edge (numpy fallback) to (39.46968039596568, -0.37651980459034834): (25767295, 35594370, 0)
Nearest edge (numpy fallback) to (39.46650588368538, -0.37117218696400867): (208232446, 29834287, 0)
Nearest edge (numpy fallback) to (39.46592038963232, -0.3808659757248246): (34366723, 30886309, 0)
Nearest edge (numpy fallback) to (39.47136484742463, -0.3739556644772068): (25767444, 25767435, 0)
Nearest edge (numpy fallback) to (39.46563690146133, -0.37606048415706866): (79669550, 7811022864, 0)
Nearest edge (numpy fallback) to (39.472335993819776, -0.37945530376378817): (1771271224, 29935870, 0)
Nearest edge (numpy fallback) to (39.471927245760924, -0.3782606928490374): (1771271224, 33214682, 0)
Nearest edge (numpy fallback) to (39.46589667440482, -0.3799960347663558): (34366719, 34366723, 0)
Nearest edge (numpy fallback) to (39.46493980784248, -0.37767945374637685): (2823683637, 2823683646, 0)
Nearest edge (numpy fallback) to (39.46772199638758, -0.38015224554956684): (30886310, 30886320, 0)
Nearest edge (numpy fallback) to (39.47154707641059, -0.37542603637451116): (25767444, 7515834823, 0)
Nearest edge (numpy fallback) to (39.4701990723847, -0.37390627481209665): (25767435, 25767434, 0)
Nearest edge (numpy fallback) to (39.46994805933505, -0.37919080184875553): (33225024, 25767311, 0)
Nearest edge (numpy fallback) to (39.47033178642162, -0.38182806336837316): (30886266, 30886267, 0)
Nearest edge (numpy fallback) to (39.4687311107592, -0.37300583897739337): (25767432, 25767365, 0)
Nearest edge (numpy fallback) to (39.470325910019014, -0.3756154541437138): (11420770020, 25767326, 0)
Nearest edge (numpy fallback) to (39.47251194668083, -0.37699040684538426): (35594407, 35594402, 0)
Nearest edge (numpy fallback) to (39.47396513333233, -0.3772113283494194): (1287585219, 35594402, 0)
Nearest edge (numpy fallback) to (39.472264642528096, -0.37234833206428913): (55597081, 1287585314, 0)
Nearest edge (numpy fallback) to (39.472273294418805, -0.37414939031843): (1287585331, 25767444, 0)
Nearest edge (numpy fallback) to (39.4669272727677, -0.3820536277697909): (30886307, 30886306, 0)
Nearest edge (numpy fallback) to (39.4744484854663, -0.37293095673615495): (60707886, 60707889, 0)
Nearest edge (numpy fallback) to (39.46959380269609, -0.37081542537947376): (25767363, 25767364, 0)
Nearest edge (numpy fallback) to (39.472860443310765, -0.37953864824724115): (29935869, 30378523, 0)
Nearest edge (numpy fallback) to (39.474757996944334, -0.3776540932965795): (30378587, 30378599, 0)
Nearest edge (numpy fallback) to (39.46662820725052, -0.37756579581948213): (34366741, 33358134, 0)
Nearest edge (numpy fallback) to (39.471024551789654, -0.37323378353925796): (25767435, 25767437, 0)
Nearest edge (numpy fallback) to (39.470580932427474, -0.37989035103797114): (29935874, 30065880, 0)
Nearest edge (numpy fallback) to (39.46951245923847, -0.3744115609213619): (25767434, 25767319, 0)
Nearest edge (numpy fallback) to (39.471349183019264, -0.37052473846898193): (55597029, 55597160, 0)
Nearest edge (numpy fallback) to (39.47277061198047, -0.37471110345153874): (1287585331, 25767444, 0)
Nearest edge (numpy fallback) to (39.47505040192908, -0.37594845072486144): (1287585219, 60707930, 0)
Nearest edge (numpy fallback) to (39.467892880771544, -0.3820584681133838): (29935835, 30886306, 0)
Nearest edge (numpy fallback) to (39.473154448276574, -0.38150519899943297): (29935864, 29935866, 0)
Nearest edge (numpy fallback) to (39.46654946533088, -0.37746264063061596): (34366741, 33358134, 0)
Nearest edge (numpy fallback) to (39.47036583505365, -0.37694305783551435): (35594402, 5902824970, 0)
Nearest edge (numpy fallback) to (39.470740320947364, -0.371896244954942): (25767437, 55597023, 0)
Nearest edge (numpy fallback) to (39.474108879356855, -0.37954561515807955): (30378587, 30378599, 0)
Nearest edge (numpy fallback) to (39.4692194869407, -0.38055929231536617): (569810111, 30065881, 0)
Nearest edge (numpy fallback) to (39.46785521455986, -0.38036144796981247): (30886310, 30886320, 0)
Nearest edge (numpy fallback) to (39.472822764953264, -0.37832398374678433): (1992142895, 1771271224, 0)
Nearest edge (numpy fallback) to (39.46474322541641, -0.3768272286837133): (2823683624, 34853534, 0)
Nearest edge (numpy fallback) to (39.4649040155866, -0.37786304756419786): (2823683637, 2823683646, 0)
Nearest edge (numpy fallback) to (39.470027192361556, -0.37240378569784127): (25767364, 25767434, 0)
Nearest edge (numpy fallback) to (39.47205329181223, -0.37918253908903354): (1771271224, 29935870, 0)
Nearest edge (numpy fallback) to (39.46869415555133, -0.37969525032283447): (4682062288, 31781815, 0)
Nearest edge (numpy fallback) to (39.47030879251216, -0.37668334302420325): (35594402, 5902824970, 0)
Nearest edge (numpy fallback) to (39.46653465615674, -0.3710409819649325): (208232416, 208232446, 0)
Nearest edge (numpy fallback) to (39.468590445958654, -0.3772700902277722): (25767295, 25767450, 0)
Nearest edge (numpy fallback) to (39.46565077109537, -0.37955967125966517): (34366716, 34366719, 0)
Nearest edge (numpy fallback) to (39.46623933284029, -0.3753170046333551): (34853528, 25767293, 0)
Nearest edge (numpy fallback) to (39.46618601658669, -0.3784056259432004): (34366714, 34366741, 0)
Nearest edge (numpy fallback) to (39.47308134425687, -0.38087532885215064): (29935866, 29935865, 0)
Nearest edge (numpy fallback) to (39.46608990731833, -0.3737040595799239): (52748278, 34853528, 0)
Nearest edge (numpy fallback) to (39.46714442288928, -0.37253562365417325): (52748282, 52748278, 0)
Nearest edge (numpy fallback) to (39.47277886157959, -0.3744660155873711): (1287585331, 25767444, 0)
Nearest edge (numpy fallback) to (39.46800814750106, -0.37625611916738033): (3906802157, 35594367, 0)
Nearest edge (numpy fallback) to (39.47469556955155, -0.37555673227182873): (1287585219, 60707930, 0)
Nearest edge (numpy fallback) to (39.472388275235375, -0.37699015111255163): (35594407, 35594402, 0)
Nearest edge (numpy fallback) to (39.4682144982354, -0.37351665531837874): (25767367, 25767369, 0)
Nearest edge (numpy fallback) to (39.46797370343442, -0.37291797463368537): (25767367, 25767369, 0)
Nearest edge (numpy fallback) to (39.47079040291764, -0.38302242105890477): (29935837, 29935845, 0)
Nearest edge (numpy fallback) to (39.46561932951515, -0.3721354107661092): (208232465, 52748967, 0)
Nearest edge (numpy fallback) to (39.46810883195777, -0.3786187223171289): (33358135, 11615007621, 0)
Nearest edge (numpy fallback) to (39.4669359534766, -0.37407681870868686): (25767369, 25767293, 0)
Nearest edge (numpy fallback) to (39.4721944744295, -0.37736199457883773): (33225025, 35594407, 0)
Nearest edge (numpy fallback) to (39.467309380285556, -0.3817280162563771): (30886307, 30886310, 0)
Nearest edge (numpy fallback) to (39.46508592933446, -0.3781152891000851): (2914614038, 34366738, 0)
Nearest edge (numpy fallback) to (39.47002455352607, -0.37783428633978616): (25767311, 25767295, 0)
Nearest edge (numpy fallback) to (39.466597794853165, -0.38100301779648443): (111148850, 30886310, 0)
Nearest edge (numpy fallback) to (39.471574951308476, -0.3726390233932688): (25767437, 55597081, 0)
Nearest edge (numpy fallback) to (39.46486187752148, -0.37753382264328256): (2823683637, 2823683646, 0)
Nearest edge (numpy fallback) to (39.47221260425347, -0.3775770330972793): (35594407, 1992142895, 0)
Nearest edge (numpy fallback) to (39.47240413338923, -0.3748984369341508): (1287585331, 25767444, 0)
Nearest edge (numpy fallback) to (39.46741677720853, -0.38210700994796526): (30886307, 30886306, 0)
Nearest edge (numpy fallback) to (39.4712976392733, -0.3730157798198359): (25767437, 55597081, 0)
Nearest edge (numpy fallback) to (39.472770930270464, -0.37361594203618886): (1287585347, 1287585331, 0)
Nearest edge (numpy fallback) to (39.46972743870009, -0.3702214588055834): (25767363, 25767364, 0)
Nearest edge (numpy fallback) to (39.47179394867268, -0.3706358653639524): (55597029, 55597160, 0)
Nearest edge (numpy fallback) to (39.47124673772274, -0.3746163163101388): (25767444, 7515834823, 0)
Nearest edge (numpy fallback) to (39.47035543261054, -0.3712878041192085): (25767363, 25767364, 0)
Nearest edge (numpy fallback) to (39.470030046109976, -0.3819640593910635): (30886266, 30886267, 0)
Nearest edge (numpy fallback) to (39.46938111360192, -0.374817054680391): (25767448, 25767319, 0)
Nearest edge (numpy fallback) to (39.470836400495614, -0.37441783347646596): (25767444, 25767435, 0)
Nearest edge (numpy fallback) to (39.47363411366193, -0.37713913347281247): (1287585219, 35594402, 0)
Nearest edge (numpy fallback) to (39.470725110377956, -0.3764504137626138): (35594402, 5902824970, 0)
Nearest edge (numpy fallback) to (39.470378424988276, -0.3810757516532031): (30065880, 30065881, 0)
Nearest edge (numpy fallback) to (39.4718550462569, -0.37052121130227156): (55597160, 56207849, 0)
Nearest edge (numpy fallback) to (39.468697393525176, -0.3819772280240773): (30886269, 30886266, 0)
Nearest edge (numpy fallback) to (39.46602620191928, -0.3736491251593953): (52748278, 34853528, 0)
Nearest edge (numpy fallback) to (39.47090864906598, -0.3749230600355775): (25767326, 7515834823, 0)
Nearest edge (numpy fallback) to (39.474535249489065, -0.37501652542488023): (1287585219, 60707930, 0)
Nearest edge (numpy fallback) to (39.47008181456808, -0.3789741822469974): (33225024, 25767311, 0)
Nearest edge (numpy fallback) to (39.4724632708869, -0.3733822043399974): (55597081, 25767444, 0)
Nearest edge (numpy fallback) to (39.46648646138511, -0.3733809390497139): (52748278, 34853528, 0)
Nearest edge (numpy fallback) to (39.47176187184722, -0.3697657173889782): (1828082336, 56207849, 0)
Nearest edge (numpy fallback) to (39.4655163093376, -0.37955232533583233): (34366716, 34366719, 0)
Nearest edge (numpy fallback) to (39.47242683626822, -0.3779494298129901): (35594407, 1992142895, 0)
node fallback (degrees as if meters) 24 of 200 points get a different node
and land 6.9 m further away (median), 44.7 m at worst
edge fallback (distance to midpoints) 64 of 200 points get a different edge
[PASS] the fallbacks are not equivalent to what they replace — they are only reached when OSMnx raises, but when they are reached nothing says the answer changedTrueWhen does snapping matter?
As a fraction of the trip, not as an absolute distance. Fifty meters of snapping on a 5 km drive is noise; on a 400 m walk it is an eighth of the journey, and it is applied at both ends.
Sixty pairs of sample points (not nodes), routed between the nodes they snap to, with the snapping error at both ends summed as a share of the route.
pair_rng = random.Random(4)
snap_rows = []
with nb.quiet():
while len(snap_rows) < 60:
i, j = pair_rng.randrange(SAMPLES), pair_rng.randrange(SAMPLES)
origin, target = snapped[i], snapped[j]
if origin == target or origin not in strong or target not in strong:
continue
found = routing.calculate_shortest_path(G, origin, target,
weight="length")
if not found or "path" not in found:
continue
snap_rows.append((float(found["distance_m"]),
float(snap_m[i]) + float(snap_m[j])))
route_len = np.array([r[0] for r in snap_rows])
snap_total = np.array([r[1] for r in snap_rows])
share = snap_total / route_len
print(f"route length median {np.median(route_len):6.0f} m")
print(f"snapping, both ends median {np.median(snap_total):6.0f} m")
print("snapping as a share of the route:")
print(f" median {100 * np.median(share):5.1f} %")
print(f" worst {100 * share.max():5.1f} % "
f"(a {route_len[share.argmax()]:.0f} m route with "
f"{snap_total[share.argmax()]:.0f} m of snapping)")
check("snapping is a large fraction of a short trip",
share.max() > 0.25,
"the rule of thumb: below about ten times the median snapping "
"distance, the route length is mostly an artifact of the snap")Shortest path: 8 nodes, 910.2m [length]
Shortest path: 14 nodes, 1019.9m [length]
Shortest path: 20 nodes, 1843.4m [length]
Shortest path: 12 nodes, 891.8m [length]
Shortest path: 22 nodes, 1301.5m [length]
Shortest path: 30 nodes, 2233.4m [length]
Shortest path: 17 nodes, 1297.0m [length]
Shortest path: 20 nodes, 1561.0m [length]
Shortest path: 14 nodes, 1007.3m [length]
Shortest path: 12 nodes, 789.7m [length]
Shortest path: 6 nodes, 504.8m [length]
Shortest path: 24 nodes, 1952.4m [length]
Shortest path: 26 nodes, 1802.9m [length]
Shortest path: 30 nodes, 2233.4m [length]
Shortest path: 28 nodes, 1739.6m [length]
Shortest path: 7 nodes, 582.4m [length]
Shortest path: 17 nodes, 1609.6m [length]
Shortest path: 14 nodes, 1187.4m [length]
Shortest path: 14 nodes, 1018.0m [length]
Shortest path: 7 nodes, 662.2m [length]
Shortest path: 25 nodes, 1869.4m [length]
Shortest path: 23 nodes, 1890.2m [length]
Shortest path: 20 nodes, 1561.7m [length]
Shortest path: 12 nodes, 1173.0m [length]
Shortest path: 8 nodes, 474.3m [length]
Shortest path: 22 nodes, 1829.8m [length]
Shortest path: 20 nodes, 1296.4m [length]
Shortest path: 14 nodes, 673.8m [length]
Shortest path: 7 nodes, 734.5m [length]
Shortest path: 8 nodes, 862.2m [length]
Shortest path: 13 nodes, 1109.5m [length]
Shortest path: 9 nodes, 915.1m [length]
Shortest path: 20 nodes, 1115.1m [length]
Shortest path: 12 nodes, 1211.1m [length]
Shortest path: 7 nodes, 601.8m [length]
Shortest path: 4 nodes, 516.7m [length]
Shortest path: 7 nodes, 709.8m [length]
Shortest path: 13 nodes, 1047.3m [length]
Shortest path: 17 nodes, 1592.3m [length]
Shortest path: 5 nodes, 530.2m [length]
Shortest path: 12 nodes, 948.6m [length]
Shortest path: 12 nodes, 907.8m [length]
Shortest path: 17 nodes, 1498.0m [length]
Shortest path: 21 nodes, 1274.0m [length]
Shortest path: 16 nodes, 1453.7m [length]
Shortest path: 17 nodes, 1144.8m [length]
Shortest path: 18 nodes, 1414.3m [length]
Shortest path: 10 nodes, 790.8m [length]
Shortest path: 4 nodes, 290.4m [length]
Shortest path: 20 nodes, 1771.5m [length]
Shortest path: 11 nodes, 1035.3m [length]
Shortest path: 20 nodes, 1600.4m [length]
Shortest path: 10 nodes, 647.5m [length]
Shortest path: 18 nodes, 1403.0m [length]
Shortest path: 17 nodes, 1578.8m [length]
Shortest path: 14 nodes, 1097.7m [length]
Shortest path: 13 nodes, 1329.5m [length]
Shortest path: 9 nodes, 843.3m [length]
Shortest path: 16 nodes, 1546.3m [length]
Shortest path: 8 nodes, 618.6m [length]
route length median 1130 m
snapping, both ends median 102 m
snapping as a share of the route:
median 9.7 %
worst 39.2 % (a 582 m route with 228 m of snapping)
[PASS] snapping is a large fraction of a short trip — the rule of thumb: below about ten times the median snapping distance, the route length is mostly an artifact of the snapTrueThe first figure: where snapping is worst
Every figure here is EEVEE through sg.render, orthographic and straight down (a map read at an angle cannot be measured off the page), with the ink look, whose colormap is turbo, and the color always carries a quantity this notebook computed.
Here that is catchment radius: for each node, the distance to the furthest sample point that snapped to it. It belongs to the node rather than the streets, so it goes on the POINT domain, where the colormap lands on the node spheres and the tubes take a neutral. The distribution is skewed, a handful of nodes on the edge of the network serving everything around them, so the top percentile is clipped. The dark violet nodes at turbo’s bottom stop are the half of the network that caught no sample point at all.
catchment = {}
for node, distance in zip(snapped, snap_m):
catchment[node] = max(catchment.get(node, 0.0), float(distance))
written, catch_values = node_attribute(net, catchment, "node_catchment_m")
observed = np.array(sorted(catchment.values()))
print(f"{written} of {G.number_of_nodes()} nodes caught at least one point")
print(f"catchment radius: median {np.median(observed):.0f} m, "
f"90th {np.percentile(observed, 90):.0f} m, "
f"worst {observed.max():.0f} m")117 of 243 nodes caught at least one point
catchment radius: median 63 m, 90th 103 m, worst 214 mThe tube neutral is used by every figure here. Notebook 13 measured why: turbo’s two ends are its darkest stops, so a node at either end of the scale is darker than ink’s default tube color and the network is drawn on top of the data it carries. (0.085, 0.080, 0.100) puts the tubes below the whole ramp and clear of the backdrop.
EDGE_NEUTRAL = (0.085, 0.080, 0.100)

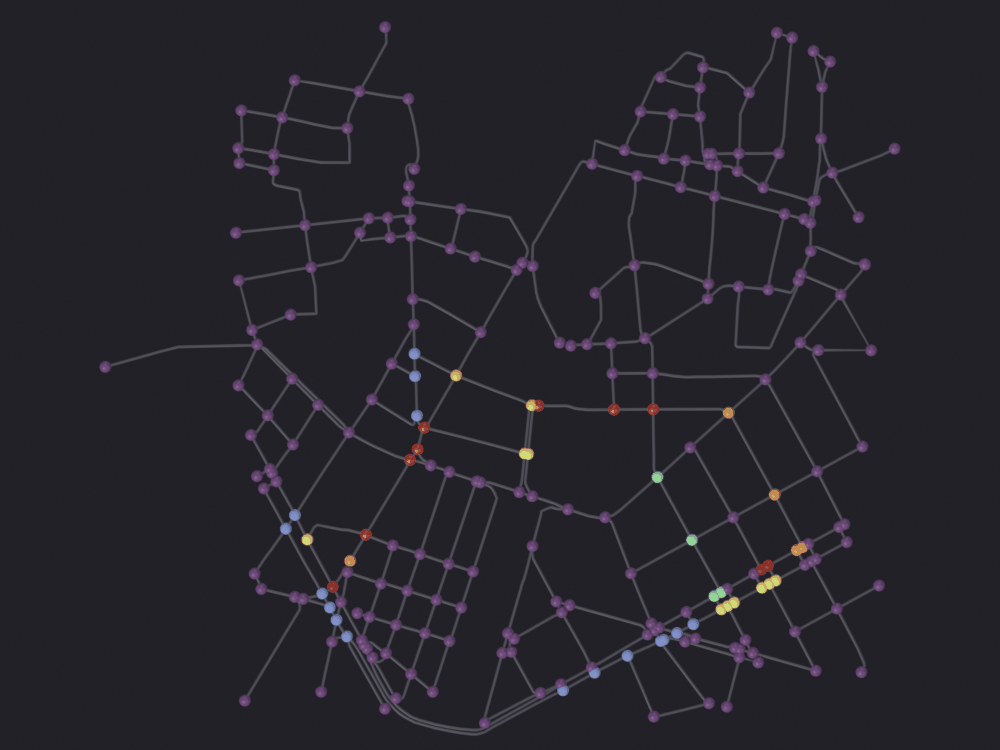

nb.figure(net, "renders/08_routing/1_snapping_catchment",
look='ink', color_attribute="node_catchment_m",
clip_high_pct=98, edge_color=EDGE_NEUTRAL) Skipping Split Edges: 'is_intersection' present, keeping streets continuous
Info: Geometry Nodes modifier added
Info: Attribute -> node_catchment_m · node_catchment_m -> turbo [log] [0 … 164.5] on Point
[PASS] 1_snapping_catchment.png legible — 8.9% ink (healthy range 0.5–60%)2 · Three distances between the same two points
“The distance between A and B” is at least three different numbers. osmnx_calc_node_pair_distance computes all three at once: it picks great-circle or Euclidean according to whether the graph is projected, routes by length, and divides. The quotient is circuity, the factor by which the streets lengthen a journey over the crow’s flight.
node_a, node_b = snapped[0], snapped[1]
props.osmnx_dist_node_a = str(node_a)
props.osmnx_dist_node_b = str(node_b)
sg.graphs.activate(net)
with nb.quiet():
result = bpy.ops.scigraphs.osmnx_calc_node_pair_distance()
print(f"osmnx_calc_node_pair_distance -> {'/'.join(result)}")
print(f" straight line {net.get('osmnx_pair_straight_m'):8.1f} m "
f"({net.get('osmnx_pair_straight_method')})")
print(f" by street {net.get('osmnx_pair_network_m'):8.1f} m")
print(f" circuity {net.get('osmnx_pair_circuity'):8.3f}")
print(f" travel time "
f"{'not reported' if 'osmnx_pair_travel_min' not in net.keys() else format(net['osmnx_pair_travel_min'], '.2f') + ' min'}")
check("the operator's circuity is the ratio it says it is",
abs(net.get("osmnx_pair_circuity")
- net.get("osmnx_pair_network_m")
/ net.get("osmnx_pair_straight_m")) < 1e-6)
check("the travel-time line is simply absent, not zero",
"osmnx_pair_travel_min" not in net.keys(),
"the operator deletes the property when the graph has no travel "
"times (spatial_operators.py:1288-1291); section 3 adds them, and "
"nothing on the panel distinguishes 'no travel times' from 'not "
"computed yet'")Shortest path: 28 nodes, 1867.7m [length]
Info: Straight: 561.6 m · Network: 1867.7 m · Circuity: 3.326
osmnx_calc_node_pair_distance -> FINISHED
straight line 561.6 m (Great-circle (haversine))
by street 1867.7 m
circuity 3.326
travel time not reported
[PASS] the operator's circuity is the ratio it says it is
[PASS] the travel-time line is simply absent, not zero — the operator deletes the property when the graph has no travel times (spatial_operators.py:1288-1291); section 3 adds them, and nothing on the panel distinguishes 'no travel times' from 'not computed yet'TrueCircuity above 3 is the one-way system, not a defect: the crow’s flight is symmetric and the drive is not, so the same pair measured the other way round gives a different number. Any statistic averaging over unordered pairs is blind to that. ox.basic_stats’ circuity_avg is computed on the undirected graph and describes the shape of the streets, not the cost of using them.
with nb.quiet():
there = routing.calculate_shortest_path(G, node_a, node_b, weight="length")
back = routing.calculate_shortest_path(G, node_b, node_a, weight="length")
print(f"A -> B {there['distance_m']:8.1f} m")
print(f"B -> A {back['distance_m']:8.1f} m")
print(f"difference {abs(there['distance_m'] - back['distance_m']):8.1f} m")
check("a drive network is not symmetric",
there["distance_m"] != back["distance_m"],
"so 'the distance between A and B' needs a direction")Shortest path: 28 nodes, 1867.7m [length]
Shortest path: 20 nodes, 1662.7m [length]
A -> B 1867.7 m
B -> A 1662.7 m
difference 205.0 m
[PASS] a drive network is not symmetric — so 'the distance between A and B' needs a directionTrue3 · Shortest by what
osmnx_path_weight takes length, travel_time and elevation_impedance. The third is notebook 11’s subject and needs elevations this graph does not have.
lengthminimizes meters. It does not know that a street is narrow, or residential, or full of traffic lights.travel_timeminimizes seconds, which are meters divided by an assumed speed. Where the speed comes from is notebook 07’s subject; it varies by street class, so the two weights order the network differently.
travel_time does not exist until it is put there. osmnx_add_edge_speeds reads the maxspeed tag where there is one and imputes a mean per highway class where there is not; osmnx_add_travel_times divides.
with nb.quiet():
sg.graphs.activate(net)
speeds_result = bpy.ops.scigraphs.osmnx_add_edge_speeds()
sg.graphs.activate(net)
times_result = bpy.ops.scigraphs.osmnx_add_travel_times()
G = graph_cache.get_osmnx_graph(net)
print(f"osmnx_add_edge_speeds -> {'/'.join(speeds_result)}")
print(f"osmnx_add_travel_times -> {'/'.join(times_result)}")
by_class = {}
for _u, _v, _k, data in G.edges(keys=True, data=True):
highway = data.get("highway")
highway = highway if isinstance(highway, str) else str(highway)
by_class.setdefault(highway, []).append(float(data["speed_kph"]))
print(f"\n {'highway':<22} {'edges':>6} {'km/h':>7}")
for highway, values in sorted(by_class.items(), key=lambda kv: -len(kv[1])):
print(f" {highway:<22} {len(values):>6} {np.mean(values):>7.1f}")Edge speeds added (fallback: 30 km/h)
Info: Edge speeds added: 375/375 graph edges, 1565 mesh edges updated (fallback: 30 km/h)
Edge travel times added to graph
Info: Travel times added: 375/375 graph edges, 1565 mesh edges updated
osmnx_add_edge_speeds -> FINISHED
osmnx_add_travel_times -> FINISHED
highway edges km/h
residential 215 28.4
secondary 53 40.4
primary 51 49.3
living_street 27 20.1
tertiary 17 37.5
primary_link 8 30.0
['living_street', 'residential'] 3 28.3
secondary_link 1 30.0Before every routing call: are the weights still there?
Two ways for travel_time to vanish between the cell that adds it and the cell that routes on it, neither raising.
- Applying a layout zeroes every EDGE attribute on the mesh.
rebuild_edges(SciGraphs/core/mesh/geometry.py:1227-1248, called fromlayout_operators.py:322, 397, 483, 589, 639) rebuilds the mesh edges and the attributes on them do not survive. A geospatial graph should never need a layout, but if anything triggers one,edge_travel_timeon the mesh goes to zero silently. - The NetworkX graph and the mesh are two different stores. Routing reads the graph out of the add-on’s in-memory cache, the figures read the mesh. A layout breaks the second and not the first; every operator in the
osmnx_simplifyfamily breaks the first and not the second (notebook 10, section 3).
Both are checked here and again before the batch in section 5.
def weights_present(graph, obj):
"""(edges with travel_time on the graph, non-zero mesh edge values)."""
on_graph = sum(1 for _u, _v, _k, d in graph.edges(keys=True, data=True)
if d.get("travel_time") not in (None, ""))
layer = obj.data.attributes.get("edge_travel_time")
if layer is None:
return on_graph, None
values = np.zeros(len(obj.data.edges), dtype=np.float32)
layer.data.foreach_get("value", values)
return on_graph, int((values > 0).sum())
on_graph, on_mesh = weights_present(G, net)
print(f"travel_time on the graph {on_graph} of {G.number_of_edges()} edges")
print(f"edge_travel_time on the mesh {on_mesh} of {len(net.data.edges)} "
"mesh edges non-zero")
check("every edge can be routed on by time",
on_graph == G.number_of_edges(),
"calculate_shortest_path refuses rather than routing on a partial "
"weight (routing.py:110-121), and that guard is the right one")
check("and the mesh still matches the graph after both operators",
graph_and_mesh_agree(G, net),
"`osmnx_add_edge_speeds` and `osmnx_add_travel_times` write to both, "
"which is not true of the operators listed in section 0")travel_time on the graph 375 of 375 edges
edge_travel_time on the mesh 1492 of 1492 mesh edges non-zero
[PASS] every edge can be routed on by time — calculate_shortest_path refuses rather than routing on a partial weight (routing.py:110-121), and that guard is the right one
[PASS] and the mesh still matches the graph after both operators — `osmnx_add_edge_speeds` and `osmnx_add_travel_times` write to both, which is not true of the operators listed in section 0TrueAnd is length in meters?
It is, on this graph, because OSMnx computed it during the download with a great-circle formula. It stops being so the moment anyone runs osmnx_add_edge_lengths on an unprojected graph. add_edge_lengths (core/osmnx/edge_attributes.py:29-56) takes geometry.length, a shapely length in whatever units the coordinates are, or falls back to Euclidean distance over the raw x/y; on an EPSG:4326 graph both are degrees. Its docstring says the graph “should be projected for accurate results” and neither it nor the operator checks.
That is not an inaccuracy but a change of units by a factor of a hundred thousand, applied to the attribute every route here minimizes. Measured on a copy, so nothing below is affected.
edge_attributes = importlib.import_module("scigraphs_core.osmnx.edge_attributes")
probe = G.copy()
before = np.array([float(d["length"])
for _u, _v, _k, d in probe.edges(keys=True, data=True)])
edge_attributes.add_edge_lengths(probe)
after = np.array([float(d["length"])
for _u, _v, _k, d in probe.edges(keys=True, data=True)])
print(f"mean edge length, as downloaded {before.mean():12.5f}")
print(f"mean edge length, after the operator {after.mean():12.5f}")
print(f"ratio {before.mean() / after.mean():12.0f}")
print(f"the second one in meters would be "
f"{meters(after.mean()):12.2f} (if the offset were pure latitude)")
check("add_edge_lengths silently changes the unit",
after.mean() < before.mean() / 1000,
"a network of 31.8 km becomes one of 0.33 'kilometers', every route "
"is still ordered correctly because the scale factor is nearly "
"uniform, and every reported distance is wrong")Edge lengths added to graph
mean edge length, as downloaded 84.75395
mean edge length, after the operator 0.00087
ratio 97291
the second one in meters would be 96.98 (if the offset were pure latitude)
[PASS] add_edge_lengths silently changes the unit — a network of 31.8 km becomes one of 0.33 'kilometers', every route is still ordered correctly because the scale factor is nearly uniform, and every reported distance is wrongTrueOnly one of the two operators honors the weight
scigraphs.find_shortest_path is the generic graph operator. It builds its graph through parse_graph_data, which returns GraphData(nodes, edges, None) (SciGraphs/core/mesh/mesh_utils.py:100), and GraphData has no edge_weights field (SciGraphs/core/algorithms/graph.py:3-8). Every weighted branch in SciGraphs/core/algorithms/pathfinding.py is guarded by hasattr(graph_data, 'edge_weights'), always false, so every edge costs 1.0 and the hop count is reported as shortest_path_length.
scigraphs.osmnx_shortest_path is a different code path (spatial_operators.py:567-572 into core/osmnx/routing.py) and hands the weight’s name to ox.shortest_path, which is Dijkstra over that attribute.
A hop count is a legitimate thing to want; the trouble is that two nearly identical names answer different questions.
node_ids = str(net.get("nodes_data", "")).split(",")
index_of = {int(n): i for i, n in enumerate(node_ids) if n.lstrip("-").isdigit()}
props.osmnx_shortest_path_source = str(node_a)
props.osmnx_shortest_path_target = str(node_b)
props.osmnx_path_weight = 'length'
sg.graphs.activate(net)
with nb.quiet():
bpy.ops.scigraphs.osmnx_shortest_path()
props.pathfinding_source = str(index_of[node_a])
props.pathfinding_target = str(index_of[node_b])
props.pathfinding_algorithm = 'DIJKSTRA'
sg.graphs.activate(net)
with nb.quiet():
generic = bpy.ops.scigraphs.find_shortest_path()
print(f"osmnx_shortest_path {net.get('osmnx_path_distance_m'):8.1f} m over "
f"{net.get('osmnx_path_num_edges')} edges")
print(f"find_shortest_path {net.get('shortest_path_length'):8.1f} over "
f"{net.get('shortest_path_nodes') - 1} edges <- hops, not meters")
check("the generic operator's 'distance' is a hop count",
abs(net.get("shortest_path_length")
- (net.get("shortest_path_nodes") - 1)) < 1e-6,
"GraphData carries no edge weights, so every edge costs 1.0")
check("the OSMnx operator does read the weight",
net.get("osmnx_path_distance_m") > 100.0,
"meters, from `ox.shortest_path(G, o, d, weight='length')`")Shortest path: 28 nodes, 1867.7m [length]
Info: Path: 1.87 km, 3.6 min (28 nodes)
Info: Path found: 11 nodes, distance: 10.00
osmnx_shortest_path 1867.7 m over 27 edges
find_shortest_path 10.0 over 10 edges <- hops, not meters
[PASS] the generic operator's 'distance' is a hop count — GraphData carries no edge weights, so every edge costs 1.0
[PASS] the OSMnx operator does read the weight — meters, from `ox.shortest_path(G, o, d, weight='length')`TrueTwo hundred pairs
How often the weight changes anything is a property of the network: a grid of identical residential streets leaves the speed nothing to trade against. Ciutat Vella has a primary road through it at 50 km/h and living streets at 20. Two hundred origin-destination pairs from the strongly connected component, fixed seed. Notebook 11 asks the same question of the gradient weight over 80 pairs on the Albaicín and gets 5.
SAMPLE = 200
od_rng = random.Random(20260812)
comparisons = []
with nb.quiet():
while len(comparisons) < SAMPLE:
origin, target = od_rng.sample(routable, 2)
by_distance = routing.calculate_shortest_path(
G, origin, target, weight="length")
by_time = routing.calculate_shortest_path(
G, origin, target, weight="travel_time")
if not by_distance or "path" not in by_distance:
continue
if not by_time or "path" not in by_time:
continue
comparisons.append((origin, target,
by_distance["path"], by_time["path"]))
def weight_of(path, attribute):
return float(nx.path_weight(G, path, weight=attribute))
changed = [c for c in comparisons if c[2] != c[3]]
print(f"{len(comparisons)} origin-destination pairs, "
f"{len(changed)} took a different route under travel time "
f"({100 * len(changed) / len(comparisons):.0f} %)")
extra_m = np.array([weight_of(t, "length") - weight_of(d, "length")
for _o, _d2, d, t in changed])
saved_s = np.array([weight_of(d, "travel_time") - weight_of(t, "travel_time")
for _o, _d2, d, t in changed])
base_m = np.array([weight_of(d, "length") for _o, _d2, d, _t in changed])
base_s = np.array([weight_of(d, "travel_time") for _o, _d2, d, _t in changed])
overlap = np.array([len(edge_set(d) & edge_set(t)) / len(edge_set(d) | edge_set(t))
for _o, _d2, d, t in changed])
print("\nwhere it changed, the time-optimal route is:")
print(f" longer by {np.median(extra_m):+6.0f} m median, "
f"{np.max(extra_m):+6.0f} m worst "
f"({100 * np.median(extra_m / base_m):+.1f} % / "
f"{100 * np.max(extra_m / base_m):+.1f} % of the distance)")
print(f" faster by {np.median(saved_s):+6.1f} s median, "
f"{np.max(saved_s):+6.1f} s worst "
f"({100 * np.median(saved_s / base_s):+.1f} % / "
f"{100 * np.max(saved_s / base_s):+.1f} % of the time)")
print(f" edge overlap with the distance route: "
f"{np.median(overlap):.2f} median, {overlap.min():.2f} least")
check("the weight changes some routes and not most of them",
0 < len(changed) < len(comparisons) / 2,
"on flat ground the two weights differ only where a faster class of "
"street runs roughly parallel to a shorter one")
check("where they differ, they differ substantially",
np.median(overlap) < 0.75,
f"the two routes share {100 * np.median(overlap):.0f} % of their "
"edges at the median: different ways round, not a block swapped")Shortest path: 10 nodes, 953.3m [length]
Shortest path: 10 nodes, 953.3m [travel_time]
Shortest path: 11 nodes, 932.7m [length]
Shortest path: 11 nodes, 932.7m [travel_time]
Shortest path: 26 nodes, 1442.3m [length]
Shortest path: 26 nodes, 1442.3m [travel_time]
Shortest path: 22 nodes, 1688.5m [length]
Shortest path: 22 nodes, 1688.5m [travel_time]
Shortest path: 16 nodes, 1039.4m [length]
Shortest path: 14 nodes, 1104.8m [travel_time]
Shortest path: 12 nodes, 1036.8m [length]
Shortest path: 12 nodes, 1036.8m [travel_time]
Shortest path: 40 nodes, 3147.2m [length]
Shortest path: 40 nodes, 3147.2m [travel_time]
Shortest path: 11 nodes, 919.8m [length]
Shortest path: 11 nodes, 919.8m [travel_time]
Shortest path: 17 nodes, 1538.5m [length]
Shortest path: 17 nodes, 1538.5m [travel_time]
Shortest path: 21 nodes, 1443.9m [length]
Shortest path: 21 nodes, 1443.9m [travel_time]
Shortest path: 16 nodes, 1316.8m [length]
Shortest path: 16 nodes, 1316.8m [travel_time]
Shortest path: 17 nodes, 1379.7m [length]
Shortest path: 17 nodes, 1379.7m [travel_time]
Shortest path: 8 nodes, 546.1m [length]
Shortest path: 8 nodes, 546.1m [travel_time]
Shortest path: 21 nodes, 1174.0m [length]
Shortest path: 21 nodes, 1174.0m [travel_time]
Shortest path: 14 nodes, 947.0m [length]
Shortest path: 14 nodes, 947.0m [travel_time]
Shortest path: 33 nodes, 2230.9m [length]
Shortest path: 38 nodes, 2240.7m [travel_time]
Shortest path: 30 nodes, 2278.8m [length]
Shortest path: 27 nodes, 2313.4m [travel_time]
Shortest path: 10 nodes, 683.6m [length]
Shortest path: 10 nodes, 683.6m [travel_time]
Shortest path: 10 nodes, 665.8m [length]
Shortest path: 10 nodes, 665.8m [travel_time]
Shortest path: 10 nodes, 501.0m [length]
Shortest path: 10 nodes, 501.0m [travel_time]
Shortest path: 16 nodes, 1584.8m [length]
Shortest path: 16 nodes, 1584.8m [travel_time]
Shortest path: 23 nodes, 1705.8m [length]
Shortest path: 23 nodes, 1705.8m [travel_time]
Shortest path: 24 nodes, 2148.2m [length]
Shortest path: 24 nodes, 2148.2m [travel_time]
Shortest path: 15 nodes, 1336.7m [length]
Shortest path: 15 nodes, 1336.7m [travel_time]
Shortest path: 6 nodes, 677.0m [length]
Shortest path: 6 nodes, 677.0m [travel_time]
Shortest path: 19 nodes, 1556.7m [length]
Shortest path: 21 nodes, 1642.4m [travel_time]
Shortest path: 28 nodes, 2192.6m [length]
Shortest path: 23 nodes, 2293.5m [travel_time]
Shortest path: 10 nodes, 878.2m [length]
Shortest path: 10 nodes, 878.2m [travel_time]
Shortest path: 21 nodes, 1610.6m [length]
Shortest path: 29 nodes, 1969.1m [travel_time]
Shortest path: 13 nodes, 973.5m [length]
Shortest path: 13 nodes, 973.5m [travel_time]
Shortest path: 18 nodes, 1538.4m [length]
Shortest path: 18 nodes, 1538.4m [travel_time]
Shortest path: 19 nodes, 1584.5m [length]
Shortest path: 19 nodes, 1584.5m [travel_time]
Shortest path: 7 nodes, 708.6m [length]
Shortest path: 7 nodes, 708.6m [travel_time]
Shortest path: 12 nodes, 738.9m [length]
Shortest path: 12 nodes, 738.9m [travel_time]
Shortest path: 20 nodes, 1748.5m [length]
Shortest path: 26 nodes, 1827.3m [travel_time]
Shortest path: 19 nodes, 1884.0m [length]
Shortest path: 19 nodes, 1884.0m [travel_time]
Shortest path: 21 nodes, 1095.0m [length]
Shortest path: 21 nodes, 1095.0m [travel_time]
Shortest path: 22 nodes, 1587.5m [length]
Shortest path: 22 nodes, 1587.5m [travel_time]
Shortest path: 17 nodes, 1303.7m [length]
Shortest path: 17 nodes, 1303.7m [travel_time]
Shortest path: 9 nodes, 912.5m [length]
Shortest path: 9 nodes, 912.5m [travel_time]
Shortest path: 29 nodes, 2278.9m [length]
Shortest path: 29 nodes, 2300.8m [travel_time]
Shortest path: 15 nodes, 1228.6m [length]
Shortest path: 19 nodes, 1268.2m [travel_time]
Shortest path: 20 nodes, 1938.8m [length]
Shortest path: 20 nodes, 1938.8m [travel_time]
Shortest path: 13 nodes, 1170.6m [length]
Shortest path: 13 nodes, 1170.6m [travel_time]
Shortest path: 21 nodes, 1565.9m [length]
Shortest path: 21 nodes, 1565.9m [travel_time]
Shortest path: 17 nodes, 1442.5m [length]
Shortest path: 17 nodes, 1442.5m [travel_time]
Shortest path: 15 nodes, 938.6m [length]
Shortest path: 15 nodes, 938.6m [travel_time]
Shortest path: 21 nodes, 1731.1m [length]
Shortest path: 21 nodes, 1731.1m [travel_time]
Shortest path: 18 nodes, 1337.4m [length]
Shortest path: 18 nodes, 1337.4m [travel_time]
Shortest path: 12 nodes, 1050.9m [length]
Shortest path: 12 nodes, 1050.9m [travel_time]
Shortest path: 20 nodes, 1647.1m [length]
Shortest path: 20 nodes, 1668.9m [travel_time]
Shortest path: 25 nodes, 2178.5m [length]
Shortest path: 25 nodes, 2178.5m [travel_time]
Shortest path: 27 nodes, 2271.0m [length]
Shortest path: 27 nodes, 2271.0m [travel_time]
Shortest path: 19 nodes, 1364.3m [length]
Shortest path: 23 nodes, 1403.9m [travel_time]
Shortest path: 24 nodes, 1808.1m [length]
Shortest path: 24 nodes, 1808.1m [travel_time]
Shortest path: 17 nodes, 1674.0m [length]
Shortest path: 17 nodes, 1674.0m [travel_time]
Shortest path: 23 nodes, 1874.3m [length]
Shortest path: 23 nodes, 1874.3m [travel_time]
Shortest path: 10 nodes, 889.5m [length]
Shortest path: 10 nodes, 889.5m [travel_time]
Shortest path: 17 nodes, 1334.0m [length]
Shortest path: 17 nodes, 1334.0m [travel_time]
Shortest path: 7 nodes, 471.9m [length]
Shortest path: 7 nodes, 471.9m [travel_time]
Shortest path: 17 nodes, 944.1m [length]
Shortest path: 17 nodes, 944.1m [travel_time]
Shortest path: 28 nodes, 1749.1m [length]
Shortest path: 28 nodes, 1749.1m [travel_time]
Shortest path: 16 nodes, 1277.5m [length]
Shortest path: 16 nodes, 1299.4m [travel_time]
Shortest path: 27 nodes, 1829.5m [length]
Shortest path: 27 nodes, 1829.5m [travel_time]
Shortest path: 14 nodes, 330.6m [length]
Shortest path: 14 nodes, 330.6m [travel_time]
Shortest path: 18 nodes, 1429.8m [length]
Shortest path: 18 nodes, 1429.8m [travel_time]
Shortest path: 6 nodes, 410.2m [length]
Shortest path: 6 nodes, 410.2m [travel_time]
Shortest path: 21 nodes, 1679.6m [length]
Shortest path: 21 nodes, 1679.6m [travel_time]
Shortest path: 12 nodes, 870.1m [length]
Shortest path: 12 nodes, 870.1m [travel_time]
Shortest path: 15 nodes, 1063.6m [length]
Shortest path: 14 nodes, 1107.6m [travel_time]
Shortest path: 11 nodes, 809.1m [length]
Shortest path: 11 nodes, 830.9m [travel_time]
Shortest path: 20 nodes, 1627.6m [length]
Shortest path: 20 nodes, 1627.6m [travel_time]
Shortest path: 21 nodes, 1669.8m [length]
Shortest path: 21 nodes, 1669.8m [travel_time]
Shortest path: 8 nodes, 621.7m [length]
Shortest path: 8 nodes, 621.7m [travel_time]
Shortest path: 27 nodes, 2309.8m [length]
Shortest path: 27 nodes, 2309.8m [travel_time]
Shortest path: 26 nodes, 2120.7m [length]
Shortest path: 26 nodes, 2120.7m [travel_time]
Shortest path: 16 nodes, 2075.5m [length]
Shortest path: 16 nodes, 2075.5m [travel_time]
Shortest path: 22 nodes, 1630.7m [length]
Shortest path: 22 nodes, 1630.7m [travel_time]
Shortest path: 17 nodes, 931.8m [length]
Shortest path: 17 nodes, 931.8m [travel_time]
Shortest path: 22 nodes, 1751.7m [length]
Shortest path: 22 nodes, 1751.7m [travel_time]
Shortest path: 25 nodes, 2000.8m [length]
Shortest path: 25 nodes, 2022.7m [travel_time]
Shortest path: 15 nodes, 1371.6m [length]
Shortest path: 15 nodes, 1371.6m [travel_time]
Shortest path: 4 nodes, 111.6m [length]
Shortest path: 4 nodes, 111.6m [travel_time]
Shortest path: 11 nodes, 902.5m [length]
Shortest path: 11 nodes, 902.5m [travel_time]
Shortest path: 17 nodes, 1557.6m [length]
Shortest path: 26 nodes, 1792.6m [travel_time]
Shortest path: 24 nodes, 1721.0m [length]
Shortest path: 24 nodes, 1721.0m [travel_time]
Shortest path: 14 nodes, 820.9m [length]
Shortest path: 14 nodes, 820.9m [travel_time]
Shortest path: 24 nodes, 1847.7m [length]
Shortest path: 24 nodes, 1847.7m [travel_time]
Shortest path: 5 nodes, 398.3m [length]
Shortest path: 5 nodes, 398.3m [travel_time]
Shortest path: 22 nodes, 1460.1m [length]
Shortest path: 19 nodes, 1491.9m [travel_time]
Shortest path: 5 nodes, 412.7m [length]
Shortest path: 5 nodes, 412.7m [travel_time]
Shortest path: 11 nodes, 907.3m [length]
Shortest path: 11 nodes, 907.3m [travel_time]
Shortest path: 11 nodes, 980.5m [length]
Shortest path: 11 nodes, 980.5m [travel_time]
Shortest path: 29 nodes, 1836.1m [length]
Shortest path: 29 nodes, 1836.1m [travel_time]
Shortest path: 13 nodes, 400.2m [length]
Shortest path: 13 nodes, 400.2m [travel_time]
Shortest path: 20 nodes, 1584.5m [length]
Shortest path: 20 nodes, 1584.5m [travel_time]
Shortest path: 10 nodes, 559.8m [length]
Shortest path: 10 nodes, 559.8m [travel_time]
Shortest path: 6 nodes, 274.6m [length]
Shortest path: 6 nodes, 274.6m [travel_time]
Shortest path: 14 nodes, 1135.4m [length]
Shortest path: 14 nodes, 1135.4m [travel_time]
Shortest path: 19 nodes, 1887.0m [length]
Shortest path: 19 nodes, 1887.0m [travel_time]
Shortest path: 20 nodes, 1394.6m [length]
Shortest path: 25 nodes, 1404.4m [travel_time]
Shortest path: 26 nodes, 2261.4m [length]
Shortest path: 26 nodes, 2261.4m [travel_time]
Shortest path: 17 nodes, 1462.3m [length]
Shortest path: 17 nodes, 1462.3m [travel_time]
Shortest path: 15 nodes, 1104.5m [length]
Shortest path: 15 nodes, 1126.4m [travel_time]
Shortest path: 14 nodes, 1096.8m [length]
Shortest path: 19 nodes, 1106.7m [travel_time]
Shortest path: 23 nodes, 1718.0m [length]
Shortest path: 22 nodes, 2033.3m [travel_time]
Shortest path: 2 nodes, 53.3m [length]
Shortest path: 2 nodes, 53.3m [travel_time]
Shortest path: 20 nodes, 1635.2m [length]
Shortest path: 20 nodes, 1635.2m [travel_time]
Shortest path: 26 nodes, 1915.1m [length]
Shortest path: 26 nodes, 1915.1m [travel_time]
Shortest path: 23 nodes, 1837.1m [length]
Shortest path: 25 nodes, 1922.8m [travel_time]
Shortest path: 9 nodes, 218.5m [length]
Shortest path: 9 nodes, 218.5m [travel_time]
Shortest path: 19 nodes, 1456.2m [length]
Shortest path: 19 nodes, 1456.2m [travel_time]
Shortest path: 15 nodes, 1063.4m [length]
Shortest path: 13 nodes, 1106.7m [travel_time]
Shortest path: 16 nodes, 1347.0m [length]
Shortest path: 16 nodes, 1347.0m [travel_time]
Shortest path: 23 nodes, 1762.3m [length]
Shortest path: 23 nodes, 1784.1m [travel_time]
Shortest path: 13 nodes, 850.8m [length]
Shortest path: 13 nodes, 850.8m [travel_time]
Shortest path: 25 nodes, 1669.7m [length]
Shortest path: 25 nodes, 1669.7m [travel_time]
Shortest path: 21 nodes, 1736.2m [length]
Shortest path: 21 nodes, 1736.2m [travel_time]
Shortest path: 20 nodes, 1274.8m [length]
Shortest path: 20 nodes, 1274.8m [travel_time]
Shortest path: 19 nodes, 1181.8m [length]
Shortest path: 24 nodes, 1191.6m [travel_time]
Shortest path: 20 nodes, 1465.7m [length]
Shortest path: 20 nodes, 1465.7m [travel_time]
Shortest path: 16 nodes, 651.1m [length]
Shortest path: 16 nodes, 651.1m [travel_time]
Shortest path: 17 nodes, 1191.6m [length]
Shortest path: 19 nodes, 1277.3m [travel_time]
Shortest path: 13 nodes, 1337.6m [length]
Shortest path: 13 nodes, 1337.6m [travel_time]
Shortest path: 11 nodes, 324.5m [length]
Shortest path: 11 nodes, 324.5m [travel_time]
Shortest path: 9 nodes, 865.2m [length]
Shortest path: 9 nodes, 865.2m [travel_time]
Shortest path: 17 nodes, 899.5m [length]
Shortest path: 17 nodes, 899.5m [travel_time]
Shortest path: 22 nodes, 1795.2m [length]
Shortest path: 22 nodes, 1795.2m [travel_time]
Shortest path: 22 nodes, 1951.6m [length]
Shortest path: 22 nodes, 1951.6m [travel_time]
Shortest path: 10 nodes, 413.7m [length]
Shortest path: 10 nodes, 413.7m [travel_time]
Shortest path: 21 nodes, 1662.9m [length]
Shortest path: 21 nodes, 1662.9m [travel_time]
Shortest path: 10 nodes, 818.3m [length]
Shortest path: 10 nodes, 818.3m [travel_time]
Shortest path: 5 nodes, 353.7m [length]
Shortest path: 5 nodes, 353.7m [travel_time]
Shortest path: 13 nodes, 1048.5m [length]
Shortest path: 13 nodes, 1048.5m [travel_time]
Shortest path: 12 nodes, 904.0m [length]
Shortest path: 12 nodes, 904.0m [travel_time]
Shortest path: 21 nodes, 1617.7m [length]
Shortest path: 21 nodes, 1617.7m [travel_time]
Shortest path: 7 nodes, 841.6m [length]
Shortest path: 7 nodes, 841.6m [travel_time]
Shortest path: 5 nodes, 401.2m [length]
Shortest path: 5 nodes, 401.2m [travel_time]
Shortest path: 19 nodes, 1371.6m [length]
Shortest path: 19 nodes, 1371.6m [travel_time]
Shortest path: 11 nodes, 930.8m [length]
Shortest path: 11 nodes, 930.8m [travel_time]
Shortest path: 8 nodes, 565.5m [length]
Shortest path: 8 nodes, 565.5m [travel_time]
Shortest path: 7 nodes, 466.4m [length]
Shortest path: 7 nodes, 466.4m [travel_time]
Shortest path: 24 nodes, 1826.1m [length]
Shortest path: 20 nodes, 2054.1m [travel_time]
Shortest path: 18 nodes, 1554.3m [length]
Shortest path: 21 nodes, 1891.4m [travel_time]
Shortest path: 20 nodes, 1269.0m [length]
Shortest path: 20 nodes, 1269.0m [travel_time]
Shortest path: 21 nodes, 1822.8m [length]
Shortest path: 21 nodes, 1822.8m [travel_time]
Shortest path: 17 nodes, 1511.4m [length]
Shortest path: 23 nodes, 1577.4m [travel_time]
Shortest path: 11 nodes, 652.4m [length]
Shortest path: 11 nodes, 652.4m [travel_time]
Shortest path: 8 nodes, 314.1m [length]
Shortest path: 8 nodes, 314.1m [travel_time]
Shortest path: 10 nodes, 886.6m [length]
Shortest path: 10 nodes, 886.6m [travel_time]
Shortest path: 24 nodes, 1775.0m [length]
Shortest path: 24 nodes, 1775.0m [travel_time]
Shortest path: 20 nodes, 1466.0m [length]
Shortest path: 20 nodes, 1466.0m [travel_time]
Shortest path: 19 nodes, 1553.6m [length]
Shortest path: 19 nodes, 1553.6m [travel_time]
Shortest path: 19 nodes, 1657.9m [length]
Shortest path: 25 nodes, 1736.7m [travel_time]
Shortest path: 22 nodes, 1609.9m [length]
Shortest path: 22 nodes, 1609.9m [travel_time]
Shortest path: 12 nodes, 880.5m [length]
Shortest path: 12 nodes, 880.5m [travel_time]
Shortest path: 17 nodes, 1591.4m [length]
Shortest path: 17 nodes, 1591.4m [travel_time]
Shortest path: 15 nodes, 1181.0m [length]
Shortest path: 15 nodes, 1181.0m [travel_time]
Shortest path: 6 nodes, 99.2m [length]
Shortest path: 6 nodes, 99.2m [travel_time]
Shortest path: 9 nodes, 417.1m [length]
Shortest path: 9 nodes, 417.1m [travel_time]
Shortest path: 17 nodes, 1561.2m [length]
Shortest path: 17 nodes, 1561.2m [travel_time]
Shortest path: 11 nodes, 1004.9m [length]
Shortest path: 11 nodes, 1004.9m [travel_time]
Shortest path: 16 nodes, 655.5m [length]
Shortest path: 16 nodes, 655.5m [travel_time]
Shortest path: 15 nodes, 976.5m [length]
Shortest path: 20 nodes, 986.3m [travel_time]
Shortest path: 15 nodes, 1094.0m [length]
Shortest path: 15 nodes, 1094.0m [travel_time]
Shortest path: 9 nodes, 550.2m [length]
Shortest path: 9 nodes, 550.2m [travel_time]
Shortest path: 13 nodes, 1110.1m [length]
Shortest path: 13 nodes, 1110.1m [travel_time]
Shortest path: 15 nodes, 1454.3m [length]
Shortest path: 15 nodes, 1454.3m [travel_time]
Shortest path: 7 nodes, 715.5m [length]
Shortest path: 7 nodes, 715.5m [travel_time]
Shortest path: 8 nodes, 773.4m [length]
Shortest path: 8 nodes, 773.4m [travel_time]
Shortest path: 17 nodes, 1310.0m [length]
Shortest path: 17 nodes, 1310.0m [travel_time]
Shortest path: 12 nodes, 599.6m [length]
Shortest path: 12 nodes, 599.6m [travel_time]
Shortest path: 20 nodes, 1536.4m [length]
Shortest path: 20 nodes, 1536.4m [travel_time]
Shortest path: 19 nodes, 1652.3m [length]
Shortest path: 28 nodes, 1887.2m [travel_time]
Shortest path: 8 nodes, 507.2m [length]
Shortest path: 8 nodes, 507.2m [travel_time]
Shortest path: 12 nodes, 691.6m [length]
Shortest path: 12 nodes, 691.6m [travel_time]
Shortest path: 10 nodes, 772.8m [length]
Shortest path: 10 nodes, 772.8m [travel_time]
Shortest path: 14 nodes, 1242.9m [length]
Shortest path: 14 nodes, 1242.9m [travel_time]
Shortest path: 21 nodes, 1258.5m [length]
Shortest path: 21 nodes, 1258.5m [travel_time]
Shortest path: 30 nodes, 2210.4m [length]
Shortest path: 30 nodes, 2210.4m [travel_time]
Shortest path: 14 nodes, 1185.1m [length]
Shortest path: 14 nodes, 1185.1m [travel_time]
Shortest path: 16 nodes, 1476.2m [length]
Shortest path: 16 nodes, 1476.2m [travel_time]
Shortest path: 4 nodes, 256.7m [length]
Shortest path: 4 nodes, 256.7m [travel_time]
Shortest path: 8 nodes, 451.7m [length]
Shortest path: 8 nodes, 451.7m [travel_time]
Shortest path: 12 nodes, 459.8m [length]
Shortest path: 12 nodes, 459.8m [travel_time]
Shortest path: 10 nodes, 719.9m [length]
Shortest path: 10 nodes, 719.9m [travel_time]
Shortest path: 4 nodes, 161.2m [length]
Shortest path: 4 nodes, 161.2m [travel_time]
Shortest path: 9 nodes, 255.7m [length]
Shortest path: 9 nodes, 255.7m [travel_time]
Shortest path: 22 nodes, 1646.0m [length]
Shortest path: 22 nodes, 1646.0m [travel_time]
Shortest path: 19 nodes, 1305.9m [length]
Shortest path: 16 nodes, 1337.7m [travel_time]
Shortest path: 7 nodes, 198.4m [length]
Shortest path: 7 nodes, 198.4m [travel_time]
Shortest path: 4 nodes, 199.9m [length]
Shortest path: 4 nodes, 199.9m [travel_time]
Shortest path: 8 nodes, 546.9m [length]
Shortest path: 8 nodes, 546.9m [travel_time]
Shortest path: 19 nodes, 1737.7m [length]
Shortest path: 17 nodes, 1800.1m [travel_time]
Shortest path: 7 nodes, 688.9m [length]
Shortest path: 7 nodes, 688.9m [travel_time]
Shortest path: 9 nodes, 539.7m [length]
Shortest path: 9 nodes, 539.7m [travel_time]
Shortest path: 11 nodes, 716.8m [length]
Shortest path: 11 nodes, 716.8m [travel_time]
Shortest path: 28 nodes, 2240.6m [length]
Shortest path: 28 nodes, 2240.6m [travel_time]
Shortest path: 33 nodes, 2439.1m [length]
Shortest path: 33 nodes, 2439.1m [travel_time]
Shortest path: 21 nodes, 1505.8m [length]
Shortest path: 17 nodes, 1733.8m [travel_time]
200 origin-destination pairs, 35 took a different route under travel time (18 %)
where it changed, the time-optimal route is:
longer by +43 m median, +359 m worst (+3.6 % / +22.3 % of the distance)
faster by +4.6 s median, +43.0 s worst (+3.2 % / +25.4 % of the time)
edge overlap with the distance route: 0.36 median, 0.00 least
[PASS] the weight changes some routes and not most of them — on flat ground the two weights differ only where a faster class of street runs roughly parallel to a shorter one
[PASS] where they differ, they differ substantially — the two routes share 36 % of their edges at the median: different ways round, not a block swappedTrueThe trade is small in both directions, which is what a dense medieval center with a 30 km/h default looks like. With a motorway through it the shape is the opposite: a large detour for a large saving in time.
4 · Drawing a route, which is harder than it looks
Highlighting a subset of a graph is a different problem from coloring a continuous attribute. Two things get in the way, both of which have already produced a bad figure in this suite.
There is no per-edge color on a graph. Blender color attributes live only on the POINT and CORNER domains; CORNER needs faces and a graph mesh has none, so color_domain_for (SciGraphs/core/coloring/attributes.py:144-158) falls through to POINT and values_for_color_domain (:225-246) averages each edge value over the vertices it touches. The tube between two nodes is then a gradient between two averages. For a continuous quantity that is defensible; for a 0/1 membership flag it is not, because a junction where one route edge meets three others reads 0.25 and the route dissolves into a smear.
osmnx_shortest_path writes exactly such a flag: on_path_edge, an INT EDGE attribute (core/osmnx/mesh_bridge.py:263-275).
flag = net.data.attributes.get("on_path_edge")
raw = np.zeros(len(net.data.edges), dtype=np.int32)
flag.data.foreach_get("value", raw)
promoted = color_attrs.values_for_color_domain(
net.data, 'EDGE', raw.astype(float), 'POINT')
print(f"on_path_edge domain {flag.domain}, values {sorted(set(raw.tolist()))}")
print(f"color domain chosen "
f"{color_attrs.color_domain_for('EDGE', net.data)} "
f"(the mesh has {len(net.data.loops)} loops, so CORNER is unavailable)")
print(f"distinct values reaching the shader: "
f"{len(set(np.round(promoted, 4).tolist()))}")
print(f" {sorted(set(np.round(promoted, 3).tolist()))[:8]} …")
print(f"vertices holding exactly 1.0: {int((promoted == 1.0).sum())} of "
f"{int((raw == 1).sum())} route mesh edges")
check("a binary edge flag does not survive the trip to the shader",
len(set(np.round(promoted, 4).tolist())) > 2,
"two values go in and a ramp of averages comes out")on_path_edge domain EDGE, values [0, 1]
color domain chosen POINT (the mesh has 0 loops, so CORNER is unavailable)
distinct values reaching the shader: 4
[0.0, 0.5, 0.667, 1.0] …
vertices holding exactly 1.0: 107 of 132 route mesh edges
[PASS] a binary edge flag does not survive the trip to the shader — two values go in and a ramp of averages comes outTrueSecond, turbo has two ends and both are dark. Even if the flag survived, a two-valued attribute uses the colormap’s two extreme stops, and turbo’s are its darkest: sampled off the ramp, luminance 28 and 29 out of 255, against 182 and 190 a third and two thirds of the way along. The route is a dark red thread on a dark blue web, and what makes it visible is hue.
On empty ground that is enough and the figure below is readable. It stops being enough the moment anything else is in the frame: in notebook 13 the same kind of attribute over extruded buildings rendered below the roofs, and the whole city had to be dimmed to get the data back on top.
The figure is made here deliberately, so the fix has something to compare against, and rendered twice, once with the route and once with the attribute zeroed everywhere. shrink=False on both: sg.preview.shrink_png re-quantizes to a 256-entry palette chosen per image, so two nearly identical frames would otherwise differ by their palettes as much as by their content.
blank = np.zeros(len(net.data.edges), dtype=np.int32)
off = net.data.attributes.new(name="on_path_edge_off", type='INT',
domain='EDGE')
off.data.foreach_set("value", blank.tolist())
naive_path = nb.render(
net, "renders/08_routing/2_route_naive", look='ink',
color_attribute="on_path_edge", edge_color=EDGE_NEUTRAL,
shrink=False, verbose=False)
naive_off = nb.render(
net, "renders/08_routing/2_route_naive_off", look='ink',
color_attribute="on_path_edge_off", edge_color=EDGE_NEUTRAL,
shrink=False, verbose=False)
nb.show(naive_path)
nb.check_render(naive_path) Promoted 4 edge attribute(s) to point domain for GN propagation
Skipping Split Edges: 'is_intersection' present, keeping streets continuous
Info: Geometry Nodes modifier added
Info: Attribute -> on_path_edge · on_path_edge -> turbo [log] [0 … 1] on Point
Promoted 4 edge attribute(s) to point domain for GN propagation
Skipping Split Edges: 'is_intersection' present, keeping streets continuous
Info: Geometry Nodes modifier added
Info: Attribute -> on_path_edge_off · on_path_edge_off -> turbo [log] [0 … 1e-09] on Point
[PASS] 2_route_naive.png legible — 9.3% ink (healthy range 0.5–60%)TrueThe fix: geometry carries membership, color carries magnitude

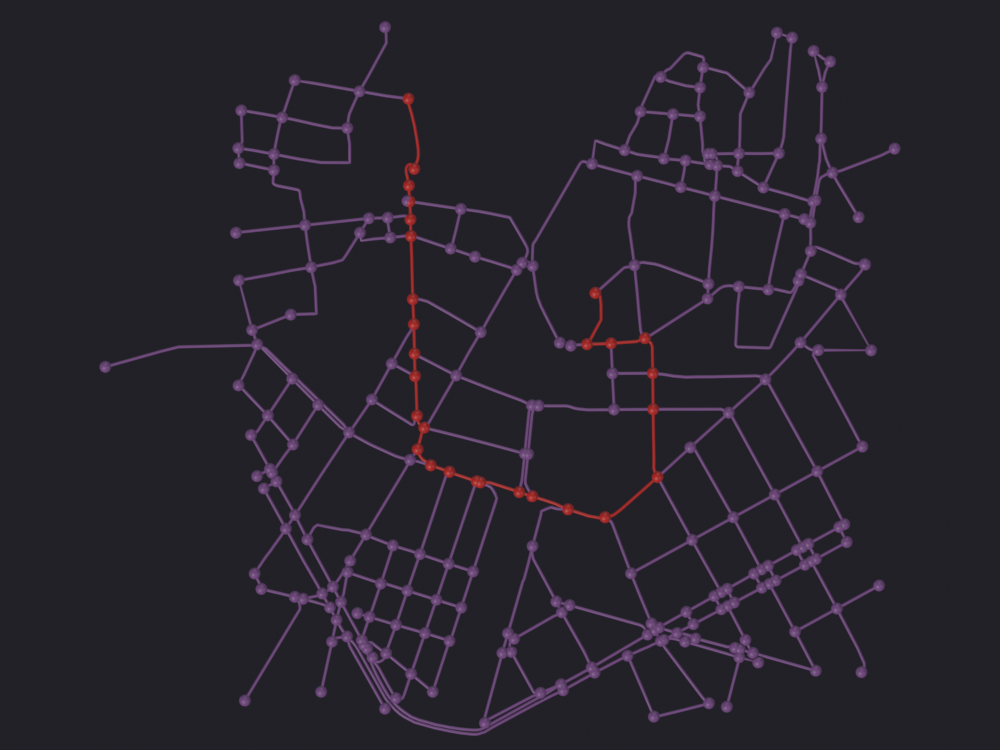

The route becomes a second object: a copy of the network mesh holding every vertex but only the route’s edges, drawn with tubes about two and a half times the radius of the ones underneath. Coaxial cylinders of different radii enclose one another rather than z-fighting, so no depth offset is needed. Its node spheres shrink to nothing and the fabric underneath goes flat and dim.
That leaves the colormap a continuous quantity: meters from the origin, a POINT attribute, so it is not averaged, interpolating it along a tube is exactly what it means, and it spends the whole ramp, where turbo’s light is.
Thickness is the reading rule: the fat ribbon is the distance-optimal route, the thin one the time-optimal route. Where they agree the fat one encloses the thin one; where they disagree there are two. Both run violet at the origin to red at the destination, so the colors read against each other say where along the trip the detour is paid for.
featured = max(changed,
key=lambda c: (len(edge_set(c[2]) & edge_set(c[3])) > 0,
weight_of(c[2], "travel_time")
- weight_of(c[3], "travel_time")))
origin, target, path_distance, path_time = featured
print(f"origin {origin} -> target {target}")
print(f" {'weight':<14} {'length':>9} {'time':>8} {'edges':>6}")
for label, path in (("length", path_distance), ("travel_time", path_time)):
print(f" {label:<14} {weight_of(path, 'length'):>7.0f} m "
f"{weight_of(path, 'travel_time'):>6.1f} s "
f"{len(path) - 1:>6}")
shared = edge_set(path_distance) & edge_set(path_time)
print(f" shared edges {len(shared)}, "
f"distance-only {len(edge_set(path_distance) - shared)}, "
f"time-only {len(edge_set(path_time) - shared)}")
check("the featured pair has both a shared spine and a divergence",
len(shared) > 0 and len(edge_set(path_distance) - shared) > 0)origin 475183429 -> target 29834287
weight length time edges
length 1511 m 169.4 s 16
travel_time 1577 m 126.4 s 22
shared edges 1, distance-only 15, time-only 21
[PASS] the featured pair has both a shared spine and a divergenceTruedef mesh_edges_of(obj, path):
"""The mesh edge indices a graph route runs over."""
mapping = mesh_bridge.build_edge_mapping(obj)
indices = set()
for u, v in zip(path[:-1], path[1:]):
indices.update(mapping.get((str(u), str(v)), []))
return indices
def cumulative_meters(graph, path):
"""`{node id: meters from the origin}` along a route."""
total = 0.0
out = {path[0]: 0.0}
for u, v in zip(path[:-1], path[1:]):
data = min(graph.get_edge_data(u, v).values(),
key=lambda d: d.get("length", float("inf")))
total += float(data.get("length", 0.0) or 0.0)
out[v] = total
return out
def route_object(source, path, name, collection="C2G_Routing"):
"""A new object holding every vertex of `source` but only `path`'s edges.
Built from coordinates rather than copied. `source.data.copy()` is wrong
twice over: it brings the material slots with it, so the route inherits the
fabric's flat color and the colormap lands in a slot nothing reads, and
deleting the unwanted edges afterwards with
`bmesh.ops.delete(context='EDGES')` also removes every vertex those edges
were the last user of, which is all but a few dozen of them.
Every vertex is kept because `sg.render.measure` derives the glyph radius
and the camera fit from the node cloud, and an object holding three percent
of the network would be sized as though it were a different graph.
"""
keep = mesh_edges_of(source, path)
coords = np.empty(len(source.data.vertices) * 3, dtype=np.float32)
source.data.vertices.foreach_get("co", coords)
pairs = np.empty(len(source.data.edges) * 2, dtype=np.int32)
source.data.edges.foreach_get("vertices", pairs)
pairs = pairs.reshape(-1, 2)
mesh = bpy.data.meshes.new(name)
mesh.from_pydata(coords.reshape(-1, 3).tolist(),
[tuple(int(v) for v in pairs[i]) for i in sorted(keep)],
[])
mesh.update()
obj = bpy.data.objects.new(name, mesh)
sg.graphs.collection(collection).objects.link(obj)
obj.matrix_world = source.matrix_world.copy()
for key in ("nodes_data", "edges_data", "num_nodes",
"is_osmnx", "osmnx_scale"):
if key in source.keys():
obj[key] = source[key]
obj["num_edges"] = len(mesh.edges)
# `node_cloud` reads `is_intersection` when `node_positions` is missing,
# which on an OSMnx import it always is.
flags = np.empty(len(source.data.vertices), dtype=np.int32)
source.data.attributes["is_intersection"].data.foreach_get("value", flags)
layer = mesh.attributes.new(name="is_intersection", type='INT',
domain='POINT')
layer.data.foreach_set("value", flags.tolist())
node_attribute(obj, cumulative_meters(G, path), "route_progress_m")
return obj
route_d = route_object(net, path_distance, "Route_by_distance")
route_t = route_object(net, path_time, "Route_by_time")
for obj, path in ((route_d, path_distance), (route_t, path_time)):
print(f"{obj.name:<20} {len(obj.data.vertices)} vertices, "
f"{len(obj.data.edges)} mesh edges, "
f"progress 0 … {weight_of(path, 'length'):.0f} m")
check("the route objects keep every vertex",
len(route_d.data.vertices) == len(net.data.vertices),
"so the autoscaler measures the same graph they are drawn over")Route_by_distance 1374 vertices, 65 mesh edges, progress 0 … 1511 m
Route_by_time 1374 vertices, 77 mesh edges, progress 0 … 1577 m
[PASS] the route objects keep every vertex — so the autoscaler measures the same graph they are drawn overTrueThe two highlights are sized and colored by hand. render_eevee builds the Geometry Nodes tree, the material and the coloring only for the object it is framing, so anything composed alongside it has to be prepared first and in that order: the tree bakes the glyph sizes in at build time, and the coloring has to survive the rebuild rather than precede it.
# The fabric's node spheres set the scale, not its tubes. At the default 0.35
# they are 12.3 m across against a 3.1 m tube, so a highlight twice the tube's
# radius is swallowed at every junction and the ribbon renders dashed.
FABRIC_NODE_FRACTION = 0.08
FABRIC_EDGE_RATIO = 0.9
base = sg.render.autoscale_geometry(net, node_fraction=FABRIC_NODE_FRACTION,
edge_ratio=FABRIC_EDGE_RATIO,
verbose=False)
print(f"fabric node radius {base['node_radius'] / 0.001:5.1f} m")
print(f"fabric tube radius {base['edge_radius'] / 0.001:5.1f} m")
for obj, ratio in ((route_d, 4.0), (route_t, 1.5)):
sg.render.autoscale_geometry(obj, verbose=False)
obj["scigraphs_node_size"] = base["node_radius"] * 0.02
obj["scigraphs_edge_thickness"] = base["edge_radius"] * ratio
sg.render.material(obj)
sg.render.geometry_nodes(obj)
sg.render.color_graph(obj, "route_progress_m", colormap="turbo",
nodes_only=False, verbose=False)
print(f"{obj.name:<20} tube radius "
f"{obj['scigraphs_edge_thickness'] / 0.001:5.1f} m "
f"({ratio:.1f} x the fabric's, "
f"{obj['scigraphs_edge_thickness'] / base['node_radius']:.1f} x its "
"beads)")fabric node radius 2.8 m
fabric tube radius 2.5 m
Skipping Split Edges: 'is_intersection' present, keeping streets continuous
Info: Geometry Nodes modifier added
Info: Attribute -> route_progress_m · route_progress_m -> turbo [log] [0 … 1511] on Point
Route_by_distance tube radius 10.1 m (4.0 x the fabric's, 3.6 x its beads)
Skipping Split Edges: 'is_intersection' present, keeping streets continuous
Info: Geometry Nodes modifier added
Info: Attribute -> route_progress_m · route_progress_m -> turbo [log] [0 … 1577] on Point
Route_by_time tube radius 3.8 m (1.5 x the fabric's, 1.4 x its beads)A graph keeps its last coloring, and asking for a plain color does not take it off. bpy.ops.scigraphs.color_apply leaves a material called <object>_SciGraphsColor in slot 0 reproducing the colormap in shader nodes, and sg.render.material() never overwrites a material it did not build (sg.render.py:736-740), so color= has no effect while that one is there. When it does build a material it wires the mesh’s existing color layer into it (:759-765), so removing the material alone would put the same ramp back.
Both come off explicitly. Left in place, color= is ignored silently and the fabric goes on rendering in the previous figure’s ramp at turbo’s bottom stop, one of the two darkest on the scale, and so disappears.
for layer in list(net.data.color_attributes):
net.data.color_attributes.remove(layer)
for key in ("scigraphs_last_color_attribute", "scigraphs_color_attr"):
if key in net.keys():
del net[key]
net.data.materials.clear()
print(f"color layers left on the fabric: {len(net.data.color_attributes)}, "
f"materials: {len(net.data.materials)}")color layers left on the fabric: 0, materials: 0Twice from the same camera, as with the naive figure: once with the highlights and once with them hidden. The pixels that changed are the ones the route reaches, and their median luminance against the median of the fabric’s own ink says whether the data ended up above the furniture.
composite = nb.render(
net, "renders/08_routing/3_route_two_weights", look='ink',
isolate=False, color=EDGE_NEUTRAL, node_fraction=FABRIC_NODE_FRACTION,
edge_ratio=FABRIC_EDGE_RATIO, shrink=False, verbose=False)
fabric_only = nb.render(
net, "renders/08_routing/3_route_fabric_only", look='ink',
isolate=False, color=EDGE_NEUTRAL, node_fraction=FABRIC_NODE_FRACTION,
edge_ratio=FABRIC_EDGE_RATIO, hide=[route_d, route_t],
shrink=False, verbose=False)
nb.show(composite)
nb.check_render(composite) Promoted 4 edge attribute(s) to point domain for GN propagation
Skipping Split Edges: 'is_intersection' present, keeping streets continuous
Info: Geometry Nodes modifier added
Promoted 4 edge attribute(s) to point domain for GN propagation
Skipping Split Edges: 'is_intersection' present, keeping streets continuous
Info: Geometry Nodes modifier added
[PASS] 3_route_two_weights.png legible — 7.1% ink (healthy range 0.5–60%)Truedef luminance_map(path):

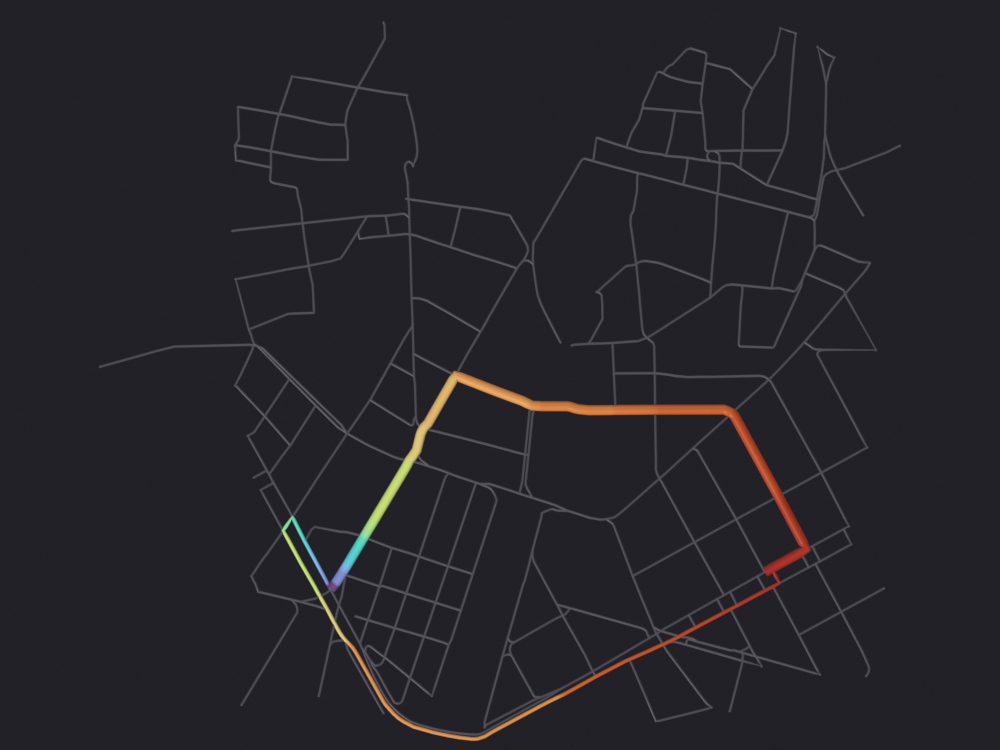

from PIL import Image
rgb = np.asarray(Image.open(str(path)).convert("RGB"), dtype=np.float32)
return 0.2126 * rgb[..., 0] + 0.7152 * rgb[..., 1] + 0.0722 * rgb[..., 2]
def highlight_contrast(with_highlight, without):
"""(reach, median luminance of the highlight, of the fabric's ink, delta)."""
a, b = luminance_map(with_highlight), luminance_map(without)
changed_px = np.abs(a - b) > 12
background = b[0, 0]
fabric_px = (np.abs(b - background) > 12) & ~changed_px
high = float(np.median(a[changed_px])) if changed_px.any() else float("nan")
low = float(np.median(b[fabric_px])) if fabric_px.any() else float("nan")
return float(changed_px.mean()), high, low, high - low
naive_reach, naive_high, naive_low, naive_delta = highlight_contrast(
naive_path, naive_off)
reach, high, low, delta = highlight_contrast(composite, fabric_only)
print(f" {'':<26} {'naive':>8} {'fixed':>8}")
print(f" {'share of frame reached %':<26} {100 * naive_reach:>8.2f} "
f"{100 * reach:>8.2f}")
print(f" {'median luminance, route':<26} {naive_high:>8.1f} {high:>8.1f}")
print(f" {'median luminance, fabric':<26} {naive_low:>8.1f} {low:>8.1f}")
print(f" {'route minus fabric':<26} {naive_delta:>+8.1f} {delta:>+8.1f}")
check("the highlight is brighter than what it is drawn over",
delta > 40,
"geometry carries membership, color carries magnitude, and the "
"fabric is flattened out of the way") naive fixed
share of frame reached % 0.29 1.49
median luminance, route 68.3 121.3
median luminance, fabric 77.0 71.1
route minus fabric -8.7 +50.2
[PASS] the highlight is brighter than what it is drawn over — geometry carries membership, color carries magnitude, and the fabric is flattened out of the wayTrueThe ink fraction cannot see any of this. check_render counts pixels that differ from the frame’s corner, so moving a color without moving a pixel leaves the count untouched: it catches an empty render and a saturated one, nothing between. The pair of frames above is the check that does see it.
print(f"ink, naive figure with the route {100 * nb.ink(naive_path):5.2f} %")
print(f"ink, the same figure with no route {100 * nb.ink(naive_off):5.2f} %")
print(f"contrast, naive / fixed {naive_delta:+6.1f} / "
f"{delta:+6.1f} levels")ink, naive figure with the route 9.30 %
ink, the same figure with no route 9.31 %
contrast, naive / fixed -8.7 / +50.2 levels5 · k shortest paths
k_shortest_paths (core/osmnx/routing.py:166-221) tries ox.routing.k_shortest_paths and falls back to networkx.shortest_simple_paths; both are Yen’s algorithm, which enumerates simple paths in increasing order of weight. So osmnx_k_shortest returns the k cheapest routes that do not revisit a node, with no constraint that they differ from one another in any interesting way. A shortest path with one block swapped is a legitimate second-shortest path, and Yen produces it before the genuinely different way round.
The pair asked below is the one section 3 featured, where the two weights disagree as much as anywhere here.
K = 8
sg.graphs.activate(net)
props.osmnx_shortest_path_source = str(origin)
props.osmnx_shortest_path_target = str(target)
props.osmnx_k_shortest = K
props.osmnx_path_weight = 'length'
with nb.quiet():
k_result = bpy.ops.scigraphs.osmnx_k_shortest()
print(f"osmnx_k_shortest -> {'/'.join(k_result)}")
print(f" osmnx_k_shortest_count {net.get('osmnx_k_shortest_count')}")
print(f" osmnx_k_shortest_km "
f"{[round(v, 3) for v in net.get('osmnx_k_shortest_km')]}")
with nb.quiet():
alternatives = routing.k_shortest_paths(G, origin, target, k=K,
weight="length")
best = edge_set(alternatives[0]["path"])
print(f"\n {'#':>2} {'length':>9} {'vs best':>8} {'time':>8} "
f"{'overlap':>8} {'new edges':>10}")
for index, entry in enumerate(alternatives):
here = edge_set(entry["path"])
print(f" {index:>2} {entry['distance_m']:>7.0f} m "
f"{100 * (entry['distance_m'] / alternatives[0]['distance_m'] - 1):>+7.1f}% "
f"{entry.get('travel_time_seconds', float('nan')):>6.0f} s "
f"{len(here & best) / len(here | best):>8.2f} "
f"{len(here - best):>10}")
pairwise = [len(edge_set(a["path"]) & edge_set(b["path"]))
/ len(edge_set(a["path"]) | edge_set(b["path"]))
for i, a in enumerate(alternatives)
for b in alternatives[i + 1:]]
spread = (alternatives[-1]["distance_m"] / alternatives[0]["distance_m"]) - 1
matches_time_route = [i for i, entry in enumerate(alternatives)
if entry["path"] == path_time]
print(f"\nmean pairwise edge overlap across the {len(alternatives)} routes: "
f"{np.mean(pairwise):.2f}")
print(f"the {K}th is only {100 * spread:.1f} % longer than the best")
print(f"the travel-time route of section 3 appears in this list at position "
f"{matches_time_route[0] if matches_time_route else 'not at all'}")
check("all k alternatives are within a few percent of the best",
spread < 0.12,
"which is what makes them alternatives at all, and what makes most "
"of them uninteresting")
check("the time-optimal route is one of the k",
bool(matches_time_route),
"routing by time is not reaching for a different kind of object: it "
"picks the path routing by distance offers at position "
f"{matches_time_route[0] + 1 if matches_time_route else '?'} of "
f"{K}")k-shortest paths: found 8 / k=8
Info: Found 8 routes: 1.51km, 1.53km, 1.58km, 1.58km, 1.60km, 1.64km, 1.64km, 1.66km
osmnx_k_shortest -> FINISHED
osmnx_k_shortest_count 8
osmnx_k_shortest_km [1.511, 1.531, 1.577, 1.578, 1.597, 1.636, 1.642, 1.655]
k-shortest paths: found 8 / k=8
# length vs best time overlap new edges
0 1511 m +0.0% 169 s 1.00 0
1 1531 m +1.3% 172 s 0.68 3
2 1577 m +4.4% 126 s 0.03 21
3 1578 m +4.4% 174 s 0.41 11
4 1597 m +5.7% 177 s 0.27 14
5 1636 m +8.2% 183 s 0.78 2
6 1642 m +8.6% 186 s 0.75 4
7 1655 m +9.5% 185 s 0.52 5
mean pairwise edge overlap across the 8 routes: 0.38
the 8th is only 9.5 % longer than the best
the travel-time route of section 3 appears in this list at position 2
[PASS] all k alternatives are within a few percent of the best — which is what makes them alternatives at all, and what makes most of them uninteresting
[PASS] the time-optimal route is one of the k — routing by time is not reaching for a different kind of object: it picks the path routing by distance offers at position 3 of 8TrueThe same question over many pairs
Forty pairs, k=3 each: how much longer is the second-best route, and how much of it is new?
second_extra = []
second_overlap = []
with nb.quiet():
for origin_i, target_i, _d, _t in comparisons[:40]:
found = routing.k_shortest_paths(G, origin_i, target_i, k=3,
weight="length")
if not found or len(found) < 2:
continue
first, second = edge_set(found[0]["path"]), edge_set(found[1]["path"])
second_extra.append(found[1]["distance_m"] / found[0]["distance_m"] - 1)
second_overlap.append(len(first & second) / len(first | second))
second_extra = np.array(second_extra)
second_overlap = np.array(second_overlap)
print(f"{len(second_extra)} pairs with a second path")
print(f" it is {100 * np.median(second_extra):+.1f} % longer (median), "
f"{100 * second_extra.max():+.1f} % at worst")
print(f" within 10 % of the best on {int((second_extra <= 0.10).sum())} of "
f"{len(second_extra)} pairs")
print(f" edge overlap with the best route: "
f"{np.median(second_overlap):.2f} median")
check("a second route is usually nearly free and nearly the same",
np.median(second_extra) < 0.10 and np.median(second_overlap) > 0.5)k-shortest paths: found 3 / k=3
k-shortest paths: found 3 / k=3
k-shortest paths: found 3 / k=3
k-shortest paths: found 3 / k=3
k-shortest paths: found 3 / k=3
k-shortest paths: found 3 / k=3
k-shortest paths: found 3 / k=3
k-shortest paths: found 3 / k=3
k-shortest paths: found 3 / k=3
k-shortest paths: found 3 / k=3
k-shortest paths: found 3 / k=3
k-shortest paths: found 3 / k=3
k-shortest paths: found 3 / k=3
k-shortest paths: found 3 / k=3
k-shortest paths: found 3 / k=3
k-shortest paths: found 3 / k=3
k-shortest paths: found 3 / k=3
k-shortest paths: found 3 / k=3
k-shortest paths: found 3 / k=3
k-shortest paths: found 3 / k=3
k-shortest paths: found 3 / k=3
k-shortest paths: found 3 / k=3
k-shortest paths: found 3 / k=3
k-shortest paths: found 3 / k=3
k-shortest paths: found 3 / k=3
k-shortest paths: found 3 / k=3
k-shortest paths: found 3 / k=3
k-shortest paths: found 3 / k=3
k-shortest paths: found 3 / k=3
k-shortest paths: found 3 / k=3
k-shortest paths: found 3 / k=3
k-shortest paths: found 3 / k=3
k-shortest paths: found 3 / k=3
k-shortest paths: found 3 / k=3
k-shortest paths: found 3 / k=3
k-shortest paths: found 3 / k=3
k-shortest paths: found 3 / k=3
k-shortest paths: found 3 / k=3
k-shortest paths: found 3 / k=3
k-shortest paths: found 3 / k=3
40 pairs with a second path
it is +5.0 % longer (median), +75.5 % at worst
within 10 % of the best on 27 of 40 pairs
edge overlap with the best route: 0.71 median
[PASS] a second route is usually nearly free and nearly the sameTrueThe overlap number used above is the Jaccard index over edge sets: shared edges divided by total distinct edges, symmetric, bounded and indifferent to length.
Getting alternatives that are actually alternative means asking for a dissimilar set rather than the k cheapest: penalize edges already used and re-route, or enforce a maximum overlap. Neither OSMnx nor SciGraphs does that.
The operator stores the k lengths in
osmnx_k_shortest_kmand marks only the first onto the mesh (routing_operators.py:94-97). The alternatives exist as numbers in a custom property and cannot be drawn through the operator at all, so the figure below counts them onto the nodes by hand.
The figure: how many of the k routes use each junction
A count from 0 to k is a genuine POINT quantity, with no averaging and no membership flag, and it says where the alternatives are forced through the same gap. Dark violet is zero, so what is colored is the union of the k routes and the rest of the network stays as ground.
through_node = {}
for entry in alternatives:
for node in set(entry["path"]):
through_node[node] = through_node.get(node, 0) + 1
written, values = node_attribute(net, through_node, "node_k_routes")
used = np.array([v for v in through_node.values()])
print(f"{len(through_node)} nodes lie on at least one of the {K} routes")
print(f" on all {K}: {int((used == K).sum())} nodes "
f"(the shared spine every alternative is forced through)")
print(f" on exactly one: {int((used == 1).sum())} nodes")
nb.figure(net, "renders/08_routing/4_k_routes",
look='ink', color_attribute="node_k_routes",
edge_color=EDGE_NEUTRAL)46 nodes lie on at least one of the 8 routes
on all 8: 3 nodes (the shared spine every alternative is forced through)
on exactly one: 16 nodes
Promoted 4 edge attribute(s) to point domain for GN propagation
Skipping Split Edges: 'is_intersection' present, keeping streets continuous
Info: Geometry Nodes modifier added
Info: Attribute -> node_k_routes · node_k_routes -> turbo [log] [0 … 8] on Point
[PASS] 4_k_routes.png legible — 8.9% ink (healthy range 0.5–60%)6 · A thousand routes
osmnx_batch_routes is the same Dijkstra run many times over a list of origins and a list of destinations, optionally across processes. Aggregate a thousand routes onto the network and you have a map of which streets a uniform demand would put its traffic on.
The operator samples without a seed.
sample_random_od_pairstakes one (core/osmnx/routing.py:386-396) andSCIGRAPHS_OT_OSMnxBatchRoutesdoes not pass it (routing_operators.py:133), so two identical invocations give two different answers and nothing records which sample produced the numbers written onto the object. Demonstrated below, then done properly through the core function.
props.osmnx_od_random_n = 50
props.osmnx_od_batch_cpus = 1
twice = []
for _ in range(2):
sg.graphs.activate(net)
with nb.quiet():
bpy.ops.scigraphs.osmnx_batch_routes()
twice.append((net.get("osmnx_batch_reached"),
round(float(net.get("osmnx_batch_mean_dist_m")), 1)))
print("osmnx_batch_routes, run twice with identical settings:")
for reached, mean_m in twice:
print(f" {reached}/50 reached, mean {mean_m:.0f} m")
check("the batch operator is not reproducible", twice[0] != twice[1],
"sample_random_od_pairs accepts a seed and the operator does not "
"pass one")Info: Batch: 41/50 reached, mean=1118m
Info: Batch: 40/50 reached, mean=1234m
osmnx_batch_routes, run twice with identical settings:
41/50 reached, mean 1118 m
40/50 reached, mean 1234 m
[PASS] the batch operator is not reproducible — sample_random_od_pairs accepts a seed and the operator does not pass oneTrueDone with a seed, and with the unreachable pairs counted
sample_random_od_pairs draws origins and destinations independently from all nodes, with two consequences the summary does not mention: a pair can have the same node at both ends, and a pair can straddle the boundary of the strongly connected component and have no route. Both come back as None and are excluded, so mean_distance_m is the mean over whatever succeeded.
ROUTES = 1000
pairs = routing.sample_random_od_pairs(G, n=ROUTES, seed=20260812)
origins = [o for o, _d in pairs]
targets = [d for _o, d in pairs]
on_graph, on_mesh = weights_present(G, net)
print(f"weights still present before the batch: {on_graph} edges on the graph, "
f"{on_mesh} non-zero on the mesh")
with nb.quiet():
batch = routing.batch_shortest_paths(G, origins, targets, weight="length")
summary = batch["summary"]
same_node = sum(1 for o, d in pairs if o == d)
outside = sum(1 for o, d in pairs if o not in strong or d not in strong)
print(f"\nrequested {summary['total_pairs']}")
print(f"reached {summary['reached']} "
f"({100 * summary['reached'] / summary['total_pairs']:.0f} %)")
print(f" same node both ends {same_node}")
print(f" an end outside the strong component {outside}")
print(f"mean distance {summary['mean_distance_m']:.0f} m "
f"(over the ones that reached)")
print(f"mean travel time {summary['mean_travel_time_s']:.1f} s")
check("one in six uniformly sampled pairs has no route",
summary["reached"] < summary["total_pairs"],
"the one-way system, not a bug, but a mean over the survivors is "
"not a mean over the sample")weights still present before the batch: 375 edges on the graph, 1492 non-zero on the mesh
requested 1000
reached 843 (84 %)
same node both ends 2
an end outside the strong component 318
mean distance 1252 m (over the ones that reached)
mean travel time 140.7 s
[PASS] one in six uniformly sampled pairs has no route — the one-way system, not a bug, but a mean over the survivors is not a mean over the sampleTrueCounting the routes onto the network
The count goes on the nodes, for the reason section 4 established. It is heavily skewed, the busiest node carrying some hundreds of times the median, so the top percentile is clipped.
through = {}
for entry in batch["paths"]:
if not entry:
continue
for node in set(entry["path"]):
through[node] = through.get(node, 0) + 1
written, load = node_attribute(net, through, "node_route_load")
counts = np.array(sorted(through.values()))
print(f"{len(through)} of {G.number_of_nodes()} nodes carry at least one route")
print(f" median {np.median(counts):.0f}, 90th {np.percentile(counts, 90):.0f}, "
f"99th {np.percentile(counts, 99):.0f}, busiest {counts.max():.0f}")
print(f" the busiest node carries "
f"{counts.max() / np.median(counts):.0f} times the median")
nb.figure(net, "renders/08_routing/5_route_load",
look='ink', color_attribute="node_route_load",
clip_high_pct=98, edge_color=EDGE_NEUTRAL)241 of 243 nodes carry at least one route
median 40, 90th 154, 99th 258, busiest 267
the busiest node carries 7 times the median
Promoted 4 edge attribute(s) to point domain for GN propagation
Skipping Split Edges: 'is_intersection' present, keeping streets continuous
Info: Geometry Nodes modifier added
Info: Attribute -> node_route_load · node_route_load -> turbo [log] [0 … 236.2] on Point
[PASS] 5_route_load.png legible — 9.0% ink (healthy range 0.5–60%)This is a crude betweenness, and crude is doing work

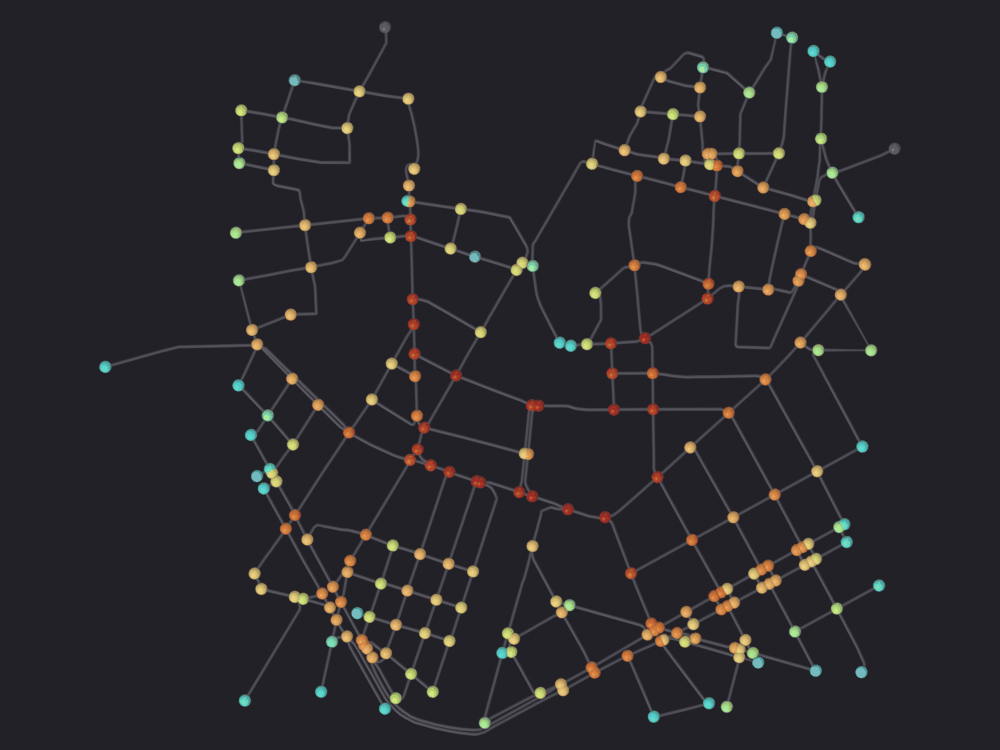

Counting shortest paths through a node is the definition of betweenness centrality. What is built above differs in four ways, two approximations and two choices.
- It is a sample, not a census. Betweenness sums over all n(n-1) ordered pairs; this sums over 1000 of the 58 806 available here, a Monte-Carlo estimate whose convergence the correlation below reports.
- It ignores ties. Where two routes are equally short betweenness splits the credit; Dijkstra returns one of them and this counts it whole.
- It uses the demand it was given. Betweenness assumes every pair of nodes is equally likely to want to travel, which is almost always wrong about a city. Counting by hand means the pairs can be replaced with real origins and destinations, the flows of notebook 03 or the population of notebook 09, at which point it stops being centrality and becomes an estimate of traffic.
- It is unnormalized, so the numbers are counts and cannot be compared between networks or between sample sizes.
Notebook 10 computes centrality properly, with osmnx_centrality and the normalizations. The reference here is networkx.betweenness_centrality called directly: the generic scigraphs.calculate_centrality goes through the same GraphData as find_shortest_path above, builds an nx.Graph() unconditionally, so it symmetrizes a one-way network without saying so, and has no edge weights to use. On a graph where a fifth of the nodes are not round-trip reachable, that is not the right comparison. Whether osmnx_centrality takes the same path is notebook 10’s question.
exact = nx.betweenness_centrality(nx.DiGraph(G), weight="length",
normalized=True)
observed = np.array([through.get(node, 0) for node in G.nodes])
reference = np.array([exact[node] for node in G.nodes])
order_observed = np.argsort(np.argsort(observed))
order_reference = np.argsort(np.argsort(reference))
spearman = float(np.corrcoef(order_observed, order_reference)[0, 1])
top_observed = set(sorted(through, key=through.get, reverse=True)[:20])
top_reference = set(sorted(exact, key=exact.get, reverse=True)[:20])
print(f"rank correlation with betweenness_centrality {spearman:.3f}")
print(f"top-20 nodes in common "
f"{len(top_observed & top_reference)} of 20")
print(f"pairs used: {ROUTES} sampled of "
f"{G.number_of_nodes() * (G.number_of_nodes() - 1):,} possible "
f"({100 * ROUTES / (G.number_of_nodes() * (G.number_of_nodes() - 1)):.1f} %)")
check("uniform demand reproduces betweenness closely", spearman > 0.9,
"which is the point: with uniform demand they are the same "
"estimator, and the interest of the batch is that the demand does "
"not have to be uniform")rank correlation with betweenness_centrality 0.982
top-20 nodes in common 19 of 20
pairs used: 1000 sampled of 58,806 possible (1.7 %)
[PASS] uniform demand reproduces betweenness closely — which is the point: with uniform demand they are the same estimator, and the interest of the batch is that the demand does not have to be uniformTrue7 · Route summaries: check rather than trust
osmnx_route_summary reports length, travel time, mean absolute grade and rise for the last computed path. Three of the four are sums over the route’s edges, so they can be checked against the same sums computed here. They agree on this graph; the two conditions under which they would not are announced nowhere.
props.osmnx_shortest_path_source = str(origin)
props.osmnx_shortest_path_target = str(target)
props.osmnx_path_weight = 'length'
sg.graphs.activate(net)
with nb.quiet():
bpy.ops.scigraphs.osmnx_shortest_path()
sg.graphs.activate(net)
with nb.quiet():
summary_result = bpy.ops.scigraphs.osmnx_route_summary()
stored = [int(x) for x in str(net.get("osmnx_last_path")).strip("[]").split(",")]
print(f"osmnx_route_summary -> {'/'.join(summary_result)}")
print(f" {'':<22} {'operator':>10} {'here':>10}")
print(f" {'length (km)':<22} {net.get('osmnx_route_length_km'):>10.3f} "
f"{weight_of(stored, 'length') / 1000:>10.3f}")
print(f" {'travel time (min)':<22} {net.get('osmnx_route_time_min'):>10.2f} "
f"{weight_of(stored, 'travel_time') / 60:>10.2f}")
print(f" {'mean |grade|':<22} {net.get('osmnx_route_mean_grade_abs'):>10.4f} "
f"{'--':>10} (no elevations on this graph)")
length_gap = abs(net.get("osmnx_route_length_km") * 1000
- weight_of(stored, "length"))
time_gap = abs(net.get("osmnx_route_time_min") * 60
- weight_of(stored, "travel_time"))
print(f"\n disagreement: {length_gap:.3f} m and {time_gap:.3f} s")
check("the reported length is the sum this notebook computes",
length_gap < 1.0,
"to within the operator's own resolution: it reports kilometers to "
"three decimals, so one meter is all it can say")
check("the reported travel time is too", time_gap < 0.6,
"minutes to two decimals, so 0.6 s")Shortest path: 17 nodes, 1511.4m [length]
Info: Path: 1.51 km, 2.8 min (17 nodes)
Info: Length 1.51km, time 2.8min
osmnx_route_summary -> FINISHED
operator here
length (km) 1.511 1.511
travel time (min) 2.82 2.82
mean |grade| 0.0000 -- (no elevations on this graph)
disagreement: 0.411 m and 0.161 s
[PASS] the reported length is the sum this notebook computes — to within the operator's own resolution: it reports kilometers to three decimals, so one meter is all it can say
[PASS] the reported travel time is too — minutes to two decimals, so 0.6 sTrueWhere the agreement would break
Parallel edges. summarize_route walks the route and for each consecutive pair takes min(candidates, key=length), the shortest of the parallel edges between those two nodes (core/osmnx/routing.py:314). The router did not: nx.path_weight takes the minimum by the weight in use, so on a pair joined by a short slow edge and a long fast one, routing by travel_time uses the long one and the summary reports the short one’s figures. This extract has no parallel edges, which is why the numbers above match; a walk network, or one with divided carriageways or service loops, has plenty.
A graph that is not a multigraph. osmnx_to_digraph and osmnx_to_undirected (notebook 06) produce a DiGraph / Graph, on which G.get_edge_data(u, v) returns the edge’s attribute dictionary rather than a dictionary of parallel edges. .values() then iterates over attribute values and min(..., key=lambda d: d.get(...)) is called on a string or a list. The module has _iter_edge_dicts and _get_first_edge_data for exactly this (routing.py:20-39), and these two functions do not use them.
print(f"node pairs joined by more than one edge: "
f"{sum(1 for u, v in set((u, v) for u, v, _k in G.edges(keys=True)) if len(G.get_edge_data(u, v)) > 1)}")
simple = nx.DiGraph(G)
with nb.quiet():
on_digraph = routing.summarize_route(simple, stored)
routed_on_digraph = routing.calculate_shortest_path(
simple, origin, target, weight="length")
print(f"\nsummarize_route on a DiGraph -> {on_digraph}")
print(f"calculate_shortest_path on a DiGraph -> "
f"{routed_on_digraph['distance_m']:.1f} m")
check("summarize_route cannot read a DiGraph", on_digraph is None,
"routing.py:311-321 assumes a multigraph; the operator reports "
"'Failed to summarize route' and says nothing about why")
check("the router itself handles one perfectly well",
routed_on_digraph is not None
and "distance_m" in routed_on_digraph,
"so the failure is in the summary, not in the graph")node pairs joined by more than one edge: 0
Error summarizing route: 'list' object has no attribute 'get'
Shortest path: 17 nodes, 1511.4m [length]
summarize_route on a DiGraph -> None
calculate_shortest_path on a DiGraph -> 1511.4 m
[PASS] summarize_route cannot read a DiGraph — routing.py:311-321 assumes a multigraph; the operator reports 'Failed to summarize route' and says nothing about why
[PASS] the router itself handles one perfectly well — so the failure is in the summary, not in the graphTrueosmnx_route_elev_profile
The last routing operator turns the stored path into a Blender curve of cumulative distance against height. It needs node elevations, which is notebook 11’s subject end to end. Nothing is fetched here, because OpenTopography’s free tier is 50 requests a day and re-running notebook 11’s section 10 is not worth one of them. What is worth showing is that the operator fails well, which is the difference between a missing figure and a wrong one.
sg.graphs.activate(net)
try:
with nb.quiet():
profile_result = bpy.ops.scigraphs.osmnx_route_elev_profile()
print("osmnx_route_elev_profile ->", "/".join(profile_result))
failed = None
except RuntimeError as exc:
failed = str(exc)
print("osmnx_route_elev_profile ->", failed)
check("it refuses rather than drawing a flat line", failed is not None,
"`route_elevation_profile` returns None on the first node without "
"an elevation and the operator turns that into an error. See "
"notebook 11 for the profile this draws once there is a DEM")Error: Route elevations unavailable — add node elevations first
osmnx_route_elev_profile -> Error: Route elevations unavailable — add node elevations first
[PASS] it refuses rather than drawing a flat line — `route_elevation_profile` returns None on the first node without an elevation and the operator turns that into an error. See notebook 11 for the profile this draws once there is a DEMTrue8 · Saving, and putting the scene back
The selection operators write to scene.scigraphs, shared state that outlives this notebook in the kernel: a source and target left set means the next notebook’s poll succeeds on a graph it was never pointed at. Cleared here.
out_dir = nb.out("12_routing")
out_dir.mkdir(parents=True, exist_ok=True)
rows = ["origin,target,length_by_distance_m,length_by_time_m,"
"time_by_distance_s,time_by_time_s,changed"]
for origin_i, target_i, path_d, path_t in comparisons:
rows.append(f"{origin_i},{target_i},"
f"{weight_of(path_d, 'length'):.1f},"
f"{weight_of(path_t, 'length'):.1f},"
f"{weight_of(path_d, 'travel_time'):.1f},"
f"{weight_of(path_t, 'travel_time'):.1f},"
f"{int(path_d != path_t)}")
(out_dir / "od_by_weight.csv").write_text("\n".join(rows) + "\n",
encoding="utf-8")
rows = ["osm_node,routes_through,betweenness,catchment_m"]
for node in G.nodes:
rows.append(f"{node},{through.get(node, 0)},{exact[node]:.6f},"
f"{catchment.get(node, float('nan')):.1f}")
(out_dir / "node_route_load.csv").write_text("\n".join(rows) + "\n",
encoding="utf-8")
print("written to", nb.rel(out_dir))
for entry in sorted(out_dir.iterdir()):
print(" ", entry.name, f"{entry.stat().st_size / 1e3:.1f} kB")written to notebooks/out/12_routing
node_route_load.csv 6.4 kB
od_by_weight.csv 9.2 kBfor name in ("osmnx_shortest_path_source", "osmnx_shortest_path_target",
"osmnx_selected_node_id", "osmnx_selected_edge_u",
"osmnx_selected_edge_v", "osmnx_dist_node_a", "osmnx_dist_node_b",
"pathfinding_source", "pathfinding_target"):
if hasattr(props, name):
setattr(props, name, "")
props.osmnx_path_weight = 'length'
props.osmnx_k_shortest = 3
props.osmnx_od_random_n = 10
print("scene routing properties cleared")scene routing properties clearedSummary
| Question | Call | What it costs you if you skip it |
|---|---|---|
| Which node is this place? | osmnx_select_nearest_node, or find_nearest_node |
50 m at the median, twice per route |
| Which street is this place on? | osmnx_select_nearest_edge |
the answer comes back in degrees |
| How far apart are two nodes? | osmnx_calc_node_pair_distance |
straight line, street distance and circuity in one call |
| Shortest by distance | osmnx_shortest_path, osmnx_path_weight='length' |
|
| Shortest by time | the same, ='travel_time' |
18 % of pairs take a different street |
| Shortest by climb | the same, ='elevation_impedance' |
notebook 11 |
| Alternatives | osmnx_k_shortest |
Yen’s, so they overlap by 70 % |
| Many routes at once | osmnx_batch_routes |
no seed: not reproducible |
| Aggregate metrics | osmnx_route_summary |
correct here; wrong on parallel edges, None on a DiGraph |
| Height along the route | osmnx_route_elev_profile |
needs notebook 11 |
Eight things that are true and are reported nowhere:
nearest_nodesreturns meters andnearest_edgesdegrees, from the same unprojected graph, throughdistance.py:100-129which documents neither;osmnx_add_edge_lengthson an unprojected graph writes degrees intolength(core/osmnx/edge_attributes.py:29-56): 84.75 m becomes 0.00087, a factor of 97 291, and the factor being nearly uniform the routes stay correct while every distance and time derived from them is wrong;- the graph cache filename is coordinates and network type only (
core/osmnx/cache.py:78-105,data_operators.py:659), so a reload can return a graph downloaded at a different radius or with different cleaning; - both numpy fallbacks in
spatial_queries.pyanswer a different question from the OSMnx call they replace (degrees-as-meters for nodes, midpoints for edges) and disagree on 12 % and 32 % of points respectively; scigraphs.find_shortest_pathcannot read an edge weight at all, becauseGraphDatahas no field for one, and reports a hop count as a distance;osmnx_batch_routessamples without a seed although the function it calls accepts one;summarize_routeandroute_elevation_profileassume a multigraph in a module that is otherwise careful not to, and returnNoneon the graphsosmnx_to_digraphproduces;- a graph mesh has no faces, so every
EDGEattribute is averaged onto the vertices before it can be colored, which is why the route here is a second object rather than a color.
Next: 13 · Accessibility and points of interest.
